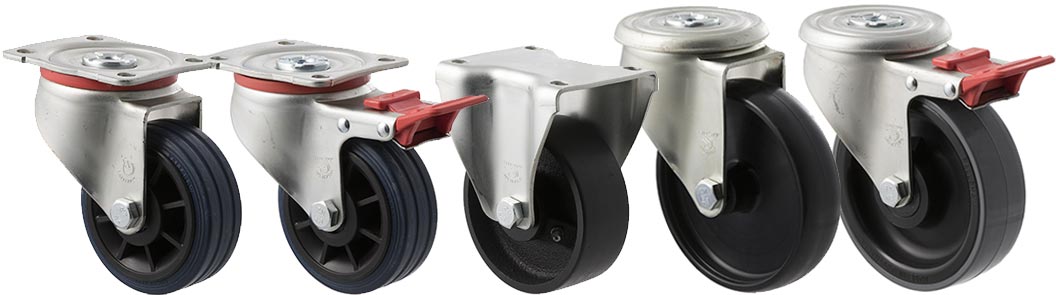

J Series castors

Heavy duty castors

J Series castors

Able to carry up to 300 kg each, J Series castors are available in 100 and 125 mm sizes, in a variety of wheel types.

Forks can also be purchased separately

Load rating: 150–300 kg
Wheels: Blue high resilience elastomer, polyurethane, hard nylon, cast iron
Forks: Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations
Warranty: Three years
Country of origin: Made in Australia

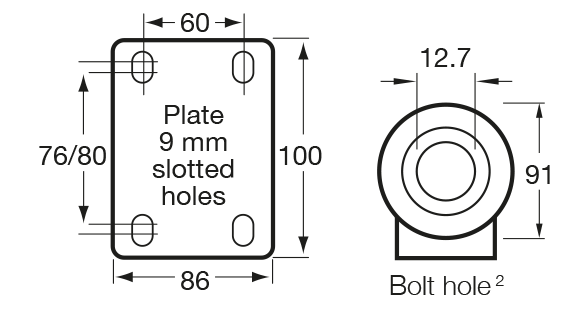

Mount dimensions:
J Series castor mount drawing

Castor and wheel options

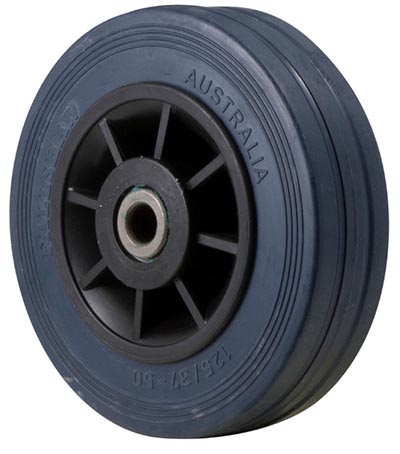

JBR wheel

JBR wheel

Max load: 150–180 kg

Material: Blue high resilience elastomer

Bearing: Roller bearing

Thread guard: Optional

100 mm castors

125 mm castors

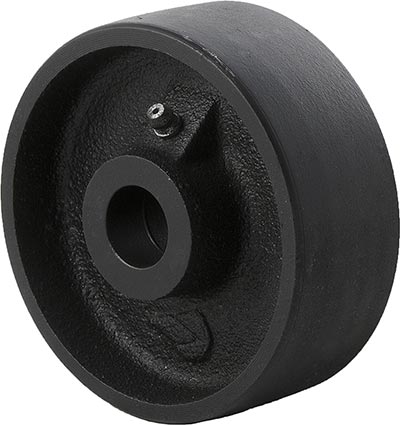

JCR wheel

JCR wheel

Max load: 230 kg

Material: Cast iron

Bearing: Roller bearing

Thread guard: No

100 mm castors

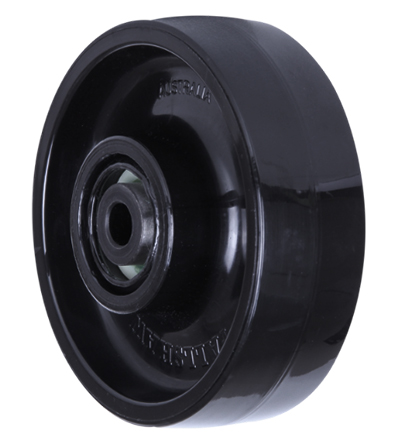

JNR wheel

JNR wheel

Max load: 300 kg

Material: Hard nylon

Bearing: Roller bearing

Thread guard: Optional

100 mm castors

125 mm castors

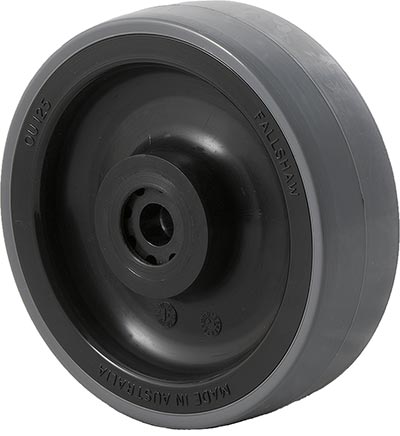

JUR wheel

JUR wheel

Max load: 300 kg

Material: Polyurethane on nylon

Bearing: Roller bearing

Thread guard: Optional

100 mm castors

125 mm castors

Browse the entire range

Browse the entire J Series range of wheels, castors and forks in our online store.
