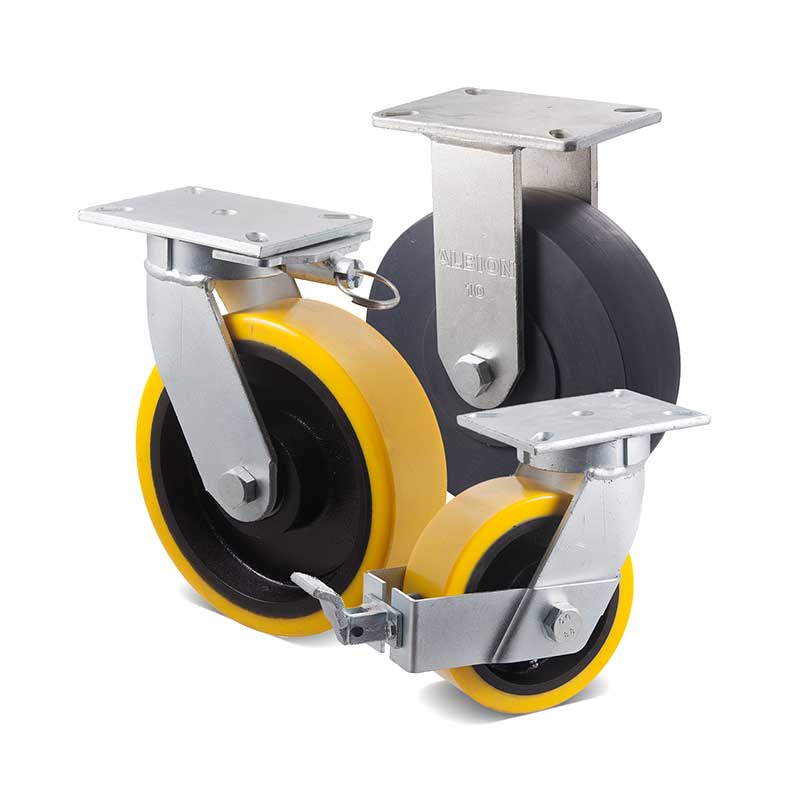

V Series castors

Very heavy duty castors

The very heavy duty V Series castor range is capable of carrying up to 2450 kg and available with polyurethane on cast iron, or high impact polymer wheels, in a variety of sizes.

Forks can also be purchased separately

Load rating: 2000–2450 kg
Wheels: Polyurethane on cast iron, high impact polymer
Forks: Zinc plated Core Coat™ in swivel plate, fixed plate, wheel brake and direction lock configurations
Warranty: Three years
Mount dimensions:
V Series castor mount drawing
V Series castor

Castor options

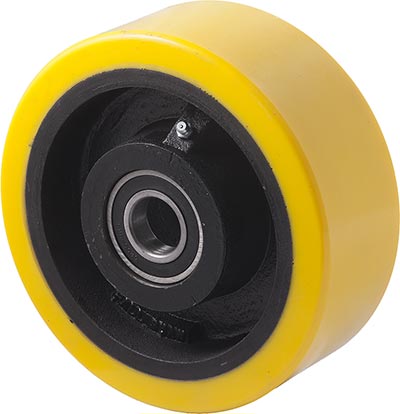

VUQ wheel

VUQ wheel

Max load: 2000 kg

Material: Polyurethane on cast iron

Bearing: Precision ball bearing

Thread guard: No

200 mm castors

250 mm castors

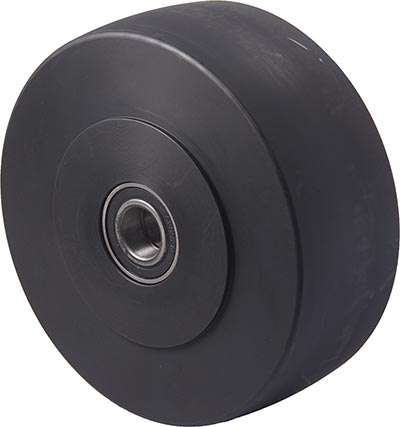

VXQ wheel

VXQ wheel

Max load: 2450 kg

Material: High impact polymer

Bearing: Precision ball bearing

Thread guard: No

200 mm castors

250 mm castors

Browse the entire range

Browse the entire Very Heavy Duty Series range of wheels, castors and forks in our online store.

Very Heavy Duty Series
