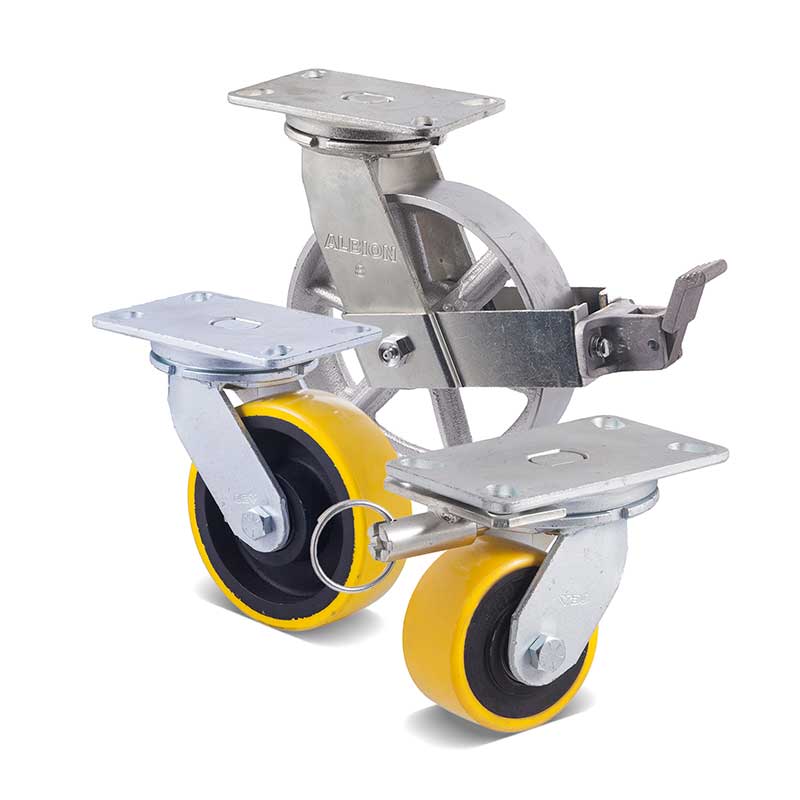

Very heavy duty castors

X Series castors

The very heavy duty X Series castor range is capable of carrying up to 1000 kg and available with fully cast iron, or polyurethane on cast iron wheels, in a variety of sizes.

Forks can also be purchased separately

Load rating: 450–1000 kg
Wheels: Cast iron, polyurethane on cast iron
Forks: Zinc plated Core Coat™ in swivel plate, fixed plate, wheel brake and direction lock configurations
Warranty: Three years
Mount dimensions:
X Series castor mount drawing
X Series castor

Castor options

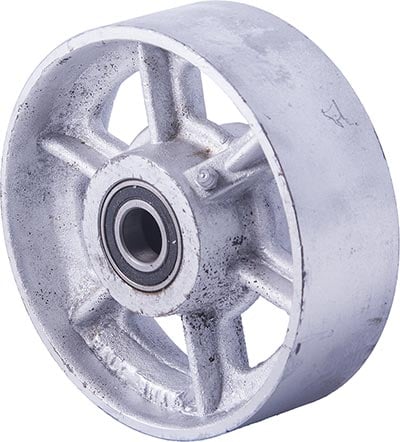

XCQ wheel

XCQ wheel

Max load: 450–820 kg

Material: Cast iron

Bearing: Precision ball bearing

Thread guard: No

100 mm castors

125 mm castors

150 mm castors

200 mm castors

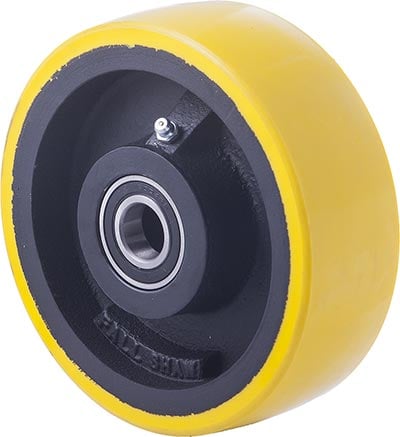

XUQ wheel

XUQ wheel

Max load: 600–1000 kg

Material: Polyurethane on cast iron

Bearing: Precision ball bearing

Thread guard: No

100 mm castors

125 mm castors

150 mm castors

200 mm castors

Browse the entire range

Browse the entire Very Heavy Duty Series range of wheels, castors and forks in our online store.

Very Heavy Duty Series
