Y Series castors

Pneumatic castors—Heavy duty and puncture-proof options

Pneumatic and puncture proof wheels and castors ranging between 50 to 360 kg load capacities.
Y Series castors are perfect for industrial, outdoor or rough terrain applications.

Forks can also be purchased separately

Load rating: 50–360 kg
Wheels: Regular or puncture proof grey (non-marking) or black neoprene tyres with a choice of steel or plastic rims.
Forks: Zinc plated. Available in swivel plate and fixed plate.
Warranty: One year

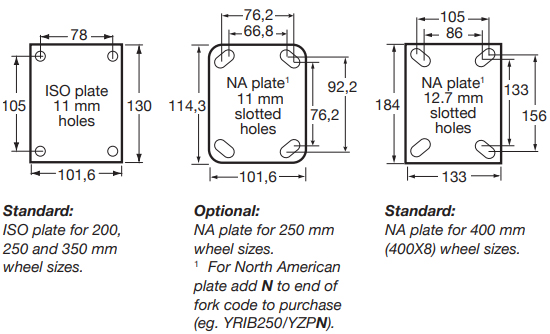

Mount dimensions:
Y Series castor mount drawing

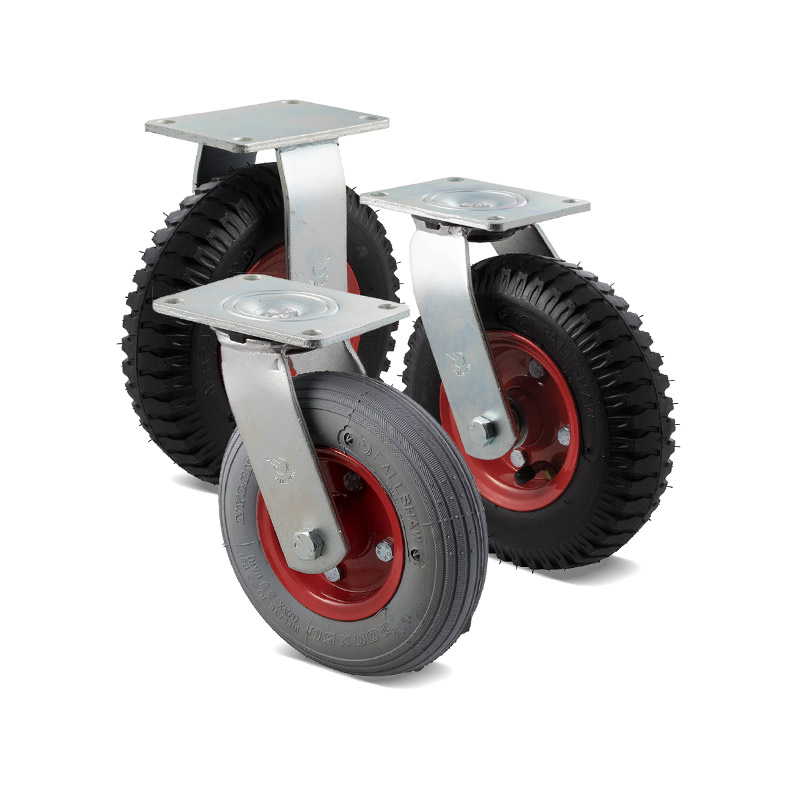

Y Series castor

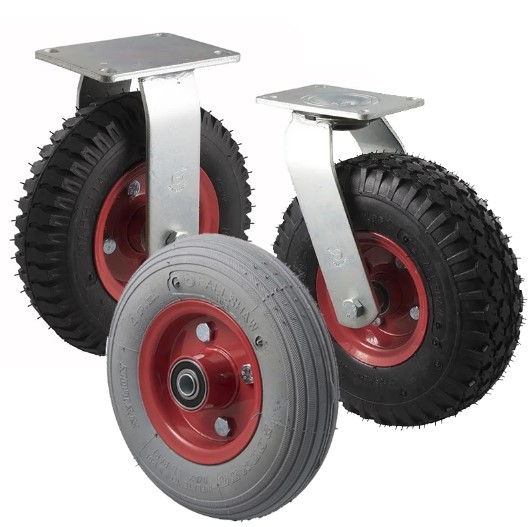

Puncture-proof range

YPRIB200 wheel

YPRIB200 wheel

Max load: 50 kg

Material: Grey polyurethane foam-filled neoprene with steel rim

Bearing: Precision ball bearing

Buy

200 mm castors

YPLUG250 wheel

YPLUG250 wheel

Max load: 75 kg

Material: Black polyurethane foam-filled neoprene with steel rim

Bearing: Precision ball bearing

Buy

220 mm castors

YPSTR350 wheel

YPSTR350 wheel

Max load: 100 kg

Material: Black polyurethane foam-filled rubber with steel rim

Bearing: Precision ball bearing

Buy

265 mm castors

YPKNO400 wheel

YPKNO400 wheel

Max load: 120 kg

Material: Puncture-proof tyre with steel rim

Bearing: Deep groove ball bearing

Buy

400 mm castors

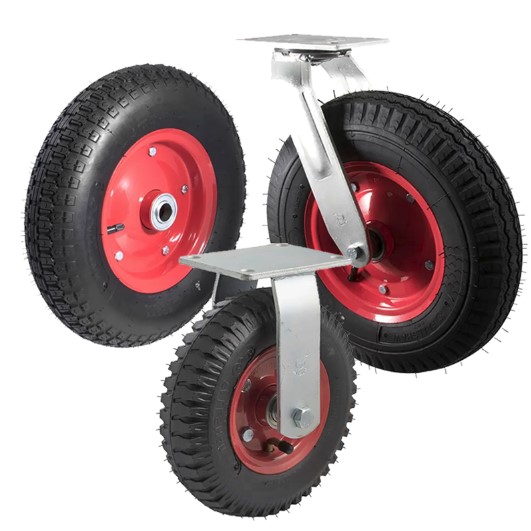

Pneumatic—steel rim range

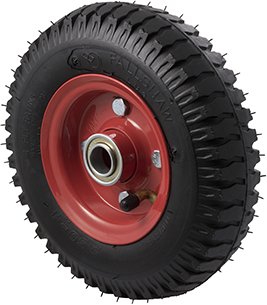

YSLUG250 wheel

YSLUG250 wheel

Max load: 120 kg

Material: Black neoprene with steel rim

Bearing: Deep groove ball bearing

Buy

220 mm castors

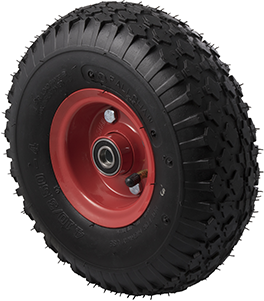

YSSTR350 wheel

YSSTR350 wheel

Max load: 180 kg

Material: Black neoprene with steel rim

Bearing: Precision ball bearing

Buy

265 mm castors

YSKNO400 wheel

YSKNO400 wheel

Max load: 220 kg

Material: Pneumatic black tyre with steel rim

Bearing: Deep groove ball bearing

Buy

400 mm castors

YSHWY400 wheel

YSHWY400 wheel

Max load: 360 kg

Material: Pneumatic black tyre with steel rim

Bearing: Q ball precision bearing

Buy

400 mm castors

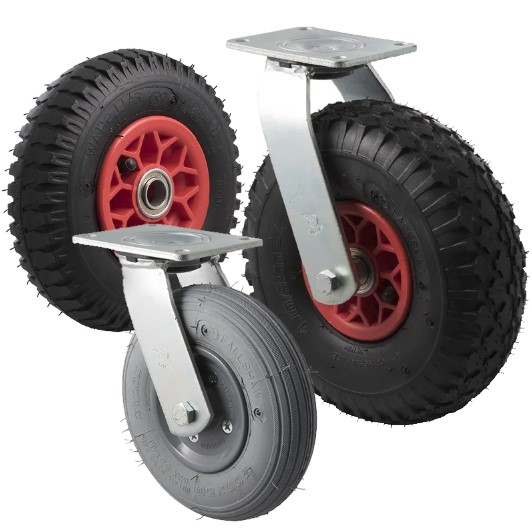

Pneumatic—plastic rim range

YRIB200 wheel

YRIB200 wheel

Max load: 75 kg

Material: Grey neoprene with plastic rim

Bearing: Roller bearing

Buy

200 mm castors

YLUG250 wheel

YLUG250 wheel

Max load: 100 kg

Material: Black neoprene with plastic rim

Bearing: Deep groove ball bearing

Buy

220 mm castors

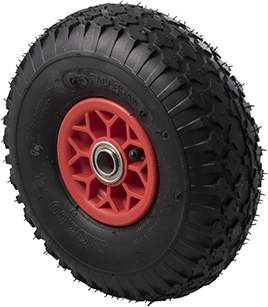

YSTR350 wheel

YSTR350 wheel

Max load: 140 kg

Material: Black neoprene with plastic rim

Bearing: Precision ball bearing

Buy

265 mm castors

YKNO400 wheel

YKNO400 wheel

Max load: 200 kg

Material: Black pneumatic neoprene with plastic rim

Bearing: Deep groove ball bearing

Buy

400 mm castors

Browse the entire Y Series

Browse the entire Y Series range of wheels, castors and forks in our online store.

Y Series range
