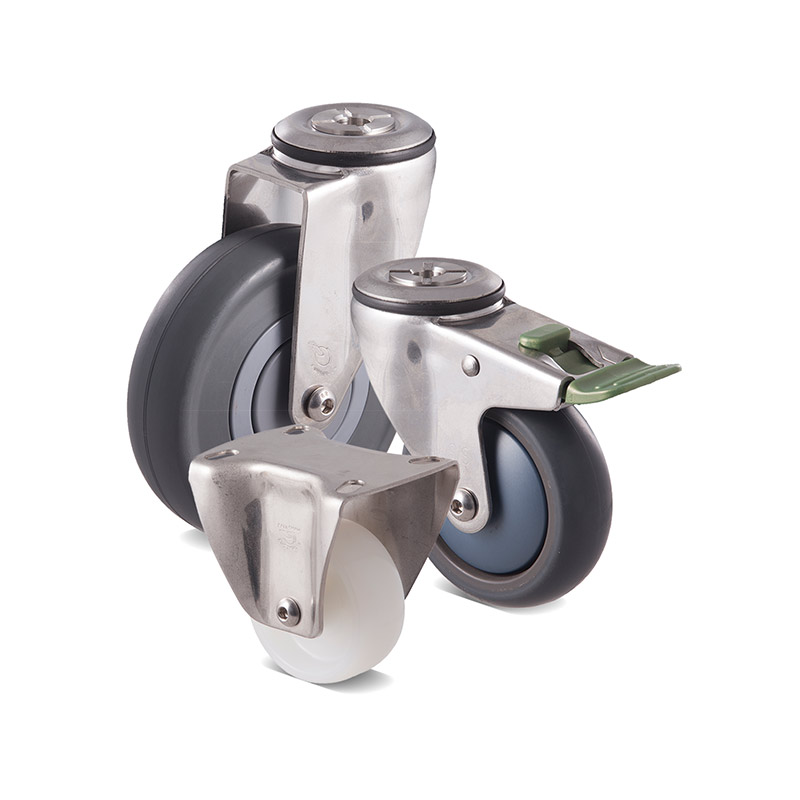

M Series Stainless steel castors

Stainless steel corrosion-resistant castors (grade 304)

Based on the versatile M Series castors, these Australian-made stainless steel castors are able to carry up to 200 kg each and are available in 75, 100 and 125 mm sizes, in a wide range of wheel types.

Quality-made, the M Stainless range is manufactured from grade 304 stainless steel.

Forks can also be purchased separately

Load rating: 85–200 kg
Wheels: Thermoplastic elastomer, white nylon, grey rubber, polyurethane
Forks: Stainless steel in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations.
Warranty: Three years
Country of origin: Australian made
Features:
  • Fork and ball bearings type 304.
  • Chicago screw axle type 304.
  • Axle, bolt and nut type 304.
  • Rivet and axle bush type 303.
  • TB spring type 301 full hard.
  • Option for regular nut and bolt or stainless steel Chicago screw.

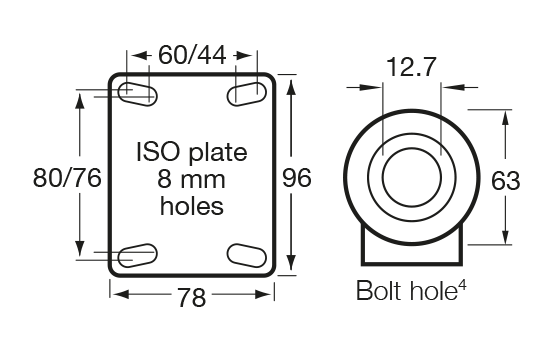

Mount dimensions:
M Series castor mount drawing
M Series castor

Castor options

MJC wheel

MJC wheel

Max load: 85 kg

Material: Thermoplastic elastomer

Bearing: Stainless steel deep goove ball bearing
Also available in anti-static, or with plain bearing

Thread guard: Yes

75 mm castors

100 mm castors

125 mm castors

MSC wheel

MSC wheel

Max load: 140–150 kg

Material: Grey rubber

Bearing: Deep goove ball bearing
Also available with plain bearing

Thread guard: Yes

100 mm castors

125 mm castors

MNN white wheel

MNN white wheel

Max load: 150 kg

Material: White nylon

Bearing: Plain bearing

Thread guard: No

75 mm castors

100 mm castors

125 mm castors

DNC wheel

DNC wheel

Max load: 200 kg

Material: White nylon

Bearing: Precision ball bearing

Thread guard: No

125 mm castors

QUC wheel

QUC wheel

Max load: 200 kg

Material: Polyurethane on nylon

Bearing: Stainless steel precision ball bearing
Also available with plain bearing

Thread guard: Yes

75 mm castors

100 mm castors

125 mm castors

Browse the entire range

Browse the entire M Stainless Steel range of wheels, castors and forks in our online store.

M Stainless Steel range


Castors and chemical resistance

This chemical resistance table describes the performance of various castor materials when exposed to corrosive or extreme conditions.

Resistance: G = Good, F = Fair, P = Poor

For more information on chemical resistance, click the button below.

Chemical resistance info

Chemical

PU

Nylon

Rubber

TPE
Grey rubber

Cast iron

Sulphuric acid 10%

G

G

P

G

P

Hydrochloric acid 10%

F

P

P

F

P

Nitric acid 10%

P

P

P

F

P

Methyl alcohol

F

G

F

G

G

Sodium hydroxide 20%

F-P

G

F

G

G

Gasoline 100%

G

G

P

F

G

Ethylene glycol

G

G

P

F

G

Brake fluid

F-P

G

P

G

G

Sodium chloride (salt)

incl. marine environments

G

G

G

G

G

Carbon tetrachloride

F

P

P

G

F

Fresh water immersion

G

G

G

G

G

Dry heat 10%

G

G

G

G

G

Outdoor weathering

G

G

G

G

G
