General spare parts and accessories

Our range of general spare parts and accessories for your wheels, castors and equipment includes axles, nuts, bolts, spacers, bearings, bushes, grease nipples, thread guards, plates and buffers.

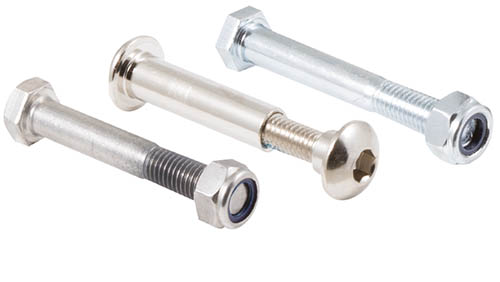

Axles, nuts and bolts

Axles, nuts and bolts
Description Order code
Axle to suit X Series (bolt and nut) SPAXLEX Buy
Axle to suit V Series (bolt and nut) SPAXLEV Buy
Axle to suit CFQ wheelchair castors—zinc plated (bolt and nut) SPAXLECFQ Buy
Axle to suit M Series—stainless steel (bolt and nut) SPAXLEMSSBOLT Buy
Axle to suit H Series (bolt and nut) SPAXLEH Buy
Axle to suit Y Series (bolt and nut) SPAXLEHPNEU Buy
Axle to suit H Series—stainless steel (bolt and nut) SPAXLEHSS Buy
Axle to suit J Series (bolt and nut) SPAXLEJ Buy
Axle to suit K Series (bolt and nut) SPAXLEK Buy
Axle to suit M Series (bolt and nut) SPAXLEM Buy
Axle to suit M Series—mild steel (Chicago screw) SPAXLEMCHICAGO Buy
Axle to suit M Series—stainless steel (Chicago screw) SPAXLEMSSCHICAGO Buy
Axle to suit O Series (bolt and nut) SPAXLEO Buy
M8X12 Cup head bolt SPBOLTM8CUPHEAD Buy
M8X1.25 Pitch conelock nut SPNUTM8CONE Buy

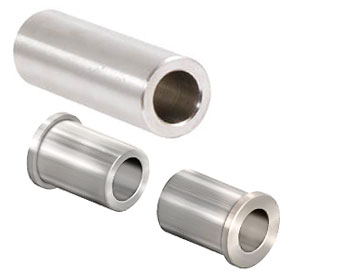

Spacers

Spacer
Description Order code
H Series spacer
61 mm L x 20 mm OD x 12.7 mm (1/2") ID
SPSPACERH Buy
H Series spacer—16 mm ID
61 mm L x 20 mm OD x 16 mm (5/8") ID
SPSPACERH(16) Buy
H Series spacer—19 mm OD
61 mm L x 19 mm OD x 1/2" ID
SPSPACERH(19) Buy
H and O Series spacer
61 mm L x 20 mm OD x 13 mm ID
SPSPACEROSS Buy
H and O Series spacer—top hat (set of 2)
61 mm L x 20 mm OD x 1/2" ID
SPSPACEROTOPHAT Buy
Special J Series spacer
46 mm L x 20 mm OD x 1/2" ID
SPSPACERJ(05)R Buy
J Series spacer to suit plain bearings
46 mm L x 1/2" OD x 10 mm ID
SPSPACERJA Buy
J Series spacer to suit roller bearings
46 mm L x 20 mm OD x 10 mm ID
SPSPACERJR Buy
J Series spacer
46 mm L x 1/2" OD x 10 mm ID
SPSPACERJSS Buy
K Series spacer
31 mm L x 12 mm OD x 8 mm ID
SPSPACERK Buy
M Series spacer
41 mm L x 12 mm OD x 8 mm ID
SPSPACERM Buy
M Series spacer—stainless steel
36 mm L x 12 mm OD x 8 mm ID
SPSPACERMSS Buy
Y Series spacer—pneumatic plastic (2 pieces)
2 x inner (the edges are indented for snug fit) 29.5 mm L x 14.95 mm OD x 12.7 mm ID (19mm overall width)
SPSPACERYP200X50 Buy
Y Series spacer—pneumatic plastic (3 pieces)
  • 1 x inner 104 mm L x 20 mm OD x 13 mm ID
  • 2 x outer 21.5 mm L x 24.95 mm OD x 20 mm ID
SPSPACERYP350X4 Buy
Y Series spacer—pneumatic plastic
114 mm L x 20 mm OD x 12 mm ID
SPSPACERYP400X8 Buy
Y Series spacer—pneumatic/steel (3 pieces)
  • 1 x inner 84 mm L x 20 mm OD x 13 mm ID
  • 2 x outer 11.4 mm L x 24.95 mm OD x 20 mm ID
SPSPACERYS250X4 Buy
Y Series spacer—pneumatic steel
61 mm L x 20 mm OD x 12.7 mm ID
SPSPACERYS200X50 Buy
Y Series spacer—pneumatic steel (3 pieces)
  • 1 x inner (the edges are indented for snug fit) 41.4 mm L x 14.95 mm OD x 12.7 mm ID (19 mm overall width)
  • 2 x outer (the edges are indented for snug fit) 31.5 mm L x 14.95 mm OD x 12.7 mm ID (19 mm overall width)
SPSPACERYS350X4 Buy
Y Series spacer—pneumatic steel (3 pieces)
  • 1 x inner spacer (the edges are indented for snug fit) 53.5 mm L x 25.5 mm OD x 12.7 mm ID (33 mm overall width)
  • 2 x outer spacers (the edges are indented for snug fit) 32 mm L x 25.5 mm OD x 12.7 mm ID (33 mm overall width)
SPSPACERYS400X8 Buy

Bearings and bushes

Bearings and bushes
Description Order code
R—Roller bearing for H Series, 20 mm ID, stainless steel SPBRGH20SS Buy
B—Deep groove bearing, 12.7 mm (1/2") for PRB (also suits GPBO) SPBRGPRB05 Enquire
Q—Precision bearing for M Series 608 SPBRGMQ608ZZ Buy
Q—Precision bearing for M Series 608, stainless steel SPBRGMQ608ZZSS Buy
Q—Precision bearing for K Series 608, twin seal SPBRGKQ608NG Enquire
R—Roller bearing for J Series, 20 mm ID SPBRGJC20 Buy
R—Roller bearing for H Series, 20 mm ID SPBRGR20 Buy
R—Roller bearing for J Series, 20 mm ID, stainless steel SPBRGR20JSS Buy
Sleeve for H Series roller bearing SPBRGR20SLEEVE Buy
R—Roller bearing for H, R and N Series, 19 (3/4") bore SPBRGR34 Buy

Grease nipples

Grease nipple
Description Order code
Grease nipples (to add a wheel) SPGNIPPLEW Buy
Grease nipples (to add a fork) SPGNIPPLEF Buy

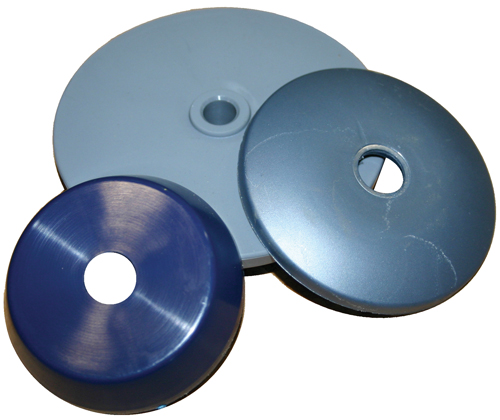

Thread guards (set of 2)

Thread guards
Description Order code
Thread guard set—KSP75 SPTGDKSP75Z Buy
Thread guard set—KJA75 TGDKJ75GRY Enquire
Thread guard set—KUQ100 SPTGDKUQ100SET Buy
Thread guard set—MSQ SPTGDMSQSET Buy
Thread guard set—MNN75 SPTGDMNN75SET Buy
Thread guard set—MNN100 SPTGDMNN100SET Buy
Thread guard set—JUR100 SPTGDJUR100 Enquire
Thread guard set—JUR125 SPTGDJU125SET Buy
Thread guard set—JBA100/125 SPTGDJB100 Enquire
Thread guard set—HB and HS 200 SPTGDHB200SET Buy
Thread guard set—HU 150 SPTGDHU150SET Buy
Thread guard set—PR wheels SPTGDGHUBCAP Buy

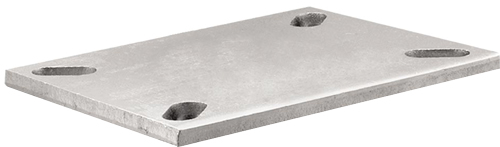

Plates

Plate
Description Order code
H and O Series ISO top plate raw SPPLATEHISORAW Buy
H and O Series NA top plate raw SPPLATEHNARAW Buy
Flat spacer plate 96 mm x 78 mm SPPLATEMISO Buy
Flat spacer plate 96 mm x 78 mm, stainless steel SPPLATEMISOSS Buy

Buffers

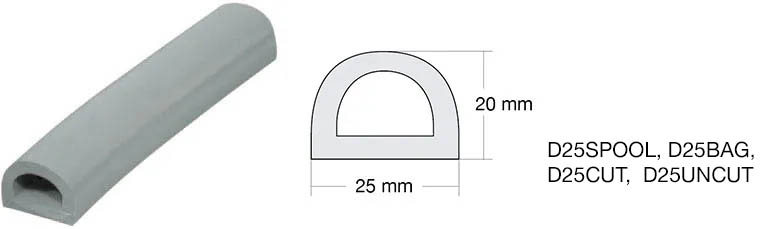

D-section buffer

D Section (hollow) buffer

Normally placed around the edges of the trolley (between corner buffers) to prevent damage to door jambs. These are fitted by pushing a (off-cut) metal strip along the centre of the section and screwing through into the side of the trolley. The head of the screw will pop through the outer rubber leaving a small hole. If the strip is to be fitted on a rounded corner, this should be of at least 50 mm radius to prevent buckling of the strip.

Order code Description
D25SPOOL Length per spool: 80 m Buy
D25BAG Length per bag: 8 m Buy
D25CUT Length per bag: 1 m Buy
D25UNCUT Continuous, uncut length of the metres ordered (minimum 2m, maximum 79m). Buy

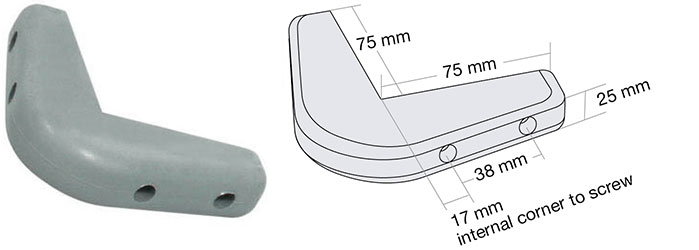

Corner buffer

Corner buffer

Corner buffers can be fitted to new or existing trolleys with square corners, reducing damage to walls and door jambs. They are fitted by four pan head self tappers, which are recessed down inside each arm of the buffer (No. 10 x 1" or similar). Being made from TPE they are very resistant to abrasion and chemicals. The end profile is matched to the ‘D’ section rubber strip.

Order code
CB8025 Buy



Corner buffer

Leg buffer—round TPE

These are used to prevent damage to corridor walls. The buffers are placed onto tubular legs just before the castors. When a trolley approaches a wall the buffers make contact first and freely revolves on the tubing, thus rolling the trolley along the wall so it causes no damage.

In the case of 25.4 mm square tubing the urethane buffers are supplied with a 32 mm hole, together with a ‘dress-cap’ with a 25.4 mm square inner and a 32 mm round outer.

Order code Description
BJ100X25 Suits 25.4 mm OD round tubing Buy
BJ100X32 Suits 32 mm OD round tubing Buy
BJ100X25SQ Suits 25.4 mm OD square tubing Enquire
BJ125X25 Suits 25.4 mm OD round tubing Buy
BJ125X32 Suits 32 mm OD round tubing Buy
BJ125X25SQ Suits 25.4 mm OD square tubing Buy
BJDC25 Black dress cap to suit 25.4 mm OD square tubing Buy



Buffer caps

Buffer caps

Buffer caps are suitable for bolt hole castors used in wet areas. They are designed to lock out water and prevent corrosion by protecting the castor's twin ball race and its stainless steel balls.
Available in five sizes.

Order code Description
-BUF22 Suits -ER19 or -AR19 Buy
-BUF25 Suits -ER19 or -AR19 Buy
-BUF28 Suits -ER28 or -AR28 Buy
-BUF32 Suits 33 mm OD of hollow stem Buy
-BUF33.5 Suits 34 mm OD of hollow stem Buy
