Fittings for 10 mm and 12 mm bolt hole castors

Our spare parts range includes threaded tube ends, grip-neck pintles and adapters.

M10 pintle bolts and M10 threaded tube ends

Description	Order code
M10 Nyloc nut.	SPM10NYLOCNUT	Buy

Order code
Drill a 12 mm (1/2") hole through the base and fit this down from the top, and screw the castor up into it through a washer. Internal thread 3/8".	38WTEE	Buy
The base must be 3 mm (1/8") thick, or washers of at least 25 mm (1") OD used on both side to spread the load.	38WNUT	Buy
Fits horizontal 1" x 1.6" square tube. Holds a 3/8" Whit nut in position 32 mm along a horizontal tube.	ENDPLUG25	Buy

Description

Order code

Drill a 12 mm (1/2") hole through the base and fit this down from the top, and screw the castor up into it through a washer.

Internal thread 3/8".

38WTEE

The base must be 3 mm (1/8") thick, or washers of at least 25 mm (1") OD used on both side to spread the load.

38WNUT

Fits horizontal 1" x 1.6" square tube. Holds a 3/8" Whit nut in position 32 mm along a horizontal tube.

ENDPLUG25

Description	Order code

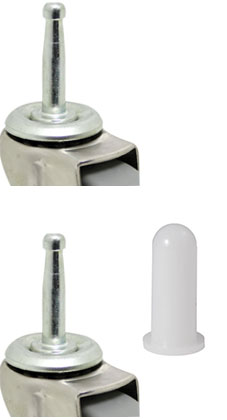

For L series, M10 grip neck pintles are supplied loose to be retro-fitted. Size: 8 mm OD x 39 mm	SP-GN	Buy
For K and M series, M12 grip neck pintles are supplied loose to be retro-fitted. Size: 8 mm OD x 39 mm	SP-GNKM	Buy
For K and M series, grip neck pintles are supplied loose to be retro-fitted to Rubbermaid carts. Size: 11 mm OD x 36.5 mm. Suits 12.7 mm bolt hole castors.	SP-GNKMRM	Buy
Adapter to suit Rubbermaid pintle SP-GNKMRM. Size: 15 mm OD x 42 mm	SP-ADAPGNKMRM	Buy

Round nylon

Adapter size	Tube size ID	OD	Wall	Order code
11	10.9	12.7	0.9	S11	Buy
14	13.6	16	1.2	S14	Buy
17	16.6	19	1.2	S17	Buy
17	16.6	19 SQ	1.2	S17SQ	Buy
19	19	22.2	1.6	S19	Buy
23	23	25.4	1.2	S23	Buy
23	23	25.4SQ	1.6	S23SQ	Buy

Suits SPM10x60SETZ set-screw (ordered separately).

Suits SPM10x60SETZ set-screw (ordered separately).

Suits SPM10x60SETZ set-screw (ordered separately).
