Arc K series

Decorative castors

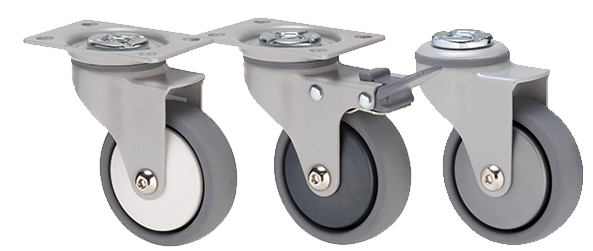

Arc K Series castors

The Arc range of castors are designed with crisp, clean finishes ideally suited to modern, contemporary furniture.

Arc Castors are based on our K Series and M Series ranges, but with decorative finishes, powder-coated in Anodic natural matt, with grey pedals and seals, and Chicago screw axles. Wheels come in four colourways—graphite, silver, white and clear, all with pearlescent pigment in the thread guards for that sophisticated high lustre look.

The 75 mm K Series castors shown below are stocked and available for next day delivery. The K Series version can also be made to order in 65 mm and 100 mm sizes subject to a minimum order quantity of 200 pieces.

Forks can also be purchased separately

Load rating: 45–50 kg
Wheels: Thermoplastic elastomer, transparent grey PVC
Forks: Powder-coated in an anodic natural matt finish, in swivel plate, bolt hole and total brake configurations
Warranty: Three years
Country of origin: Australian made
Mount dimensions:
K Series castor mount drawing

Castor options

KJQ wheel

KJQ Graphite wheel

Max load: 50 kg

Material: Thermoplastic elastomer

Bearing: Precision ball bearing

Thread guard: Yes

Graphite castors

Silver castors

White castors

Clear grey castors

KVP wheel

KVP Clear grey wheel

Max load: 45 kg

Material: Transparent grey PVC

Bearing: Plain bearing

Thread guard: No

75 mm castors
