Heavy duty castors: H Series (400–600 kg capacity)

Tough castors for heavy loads

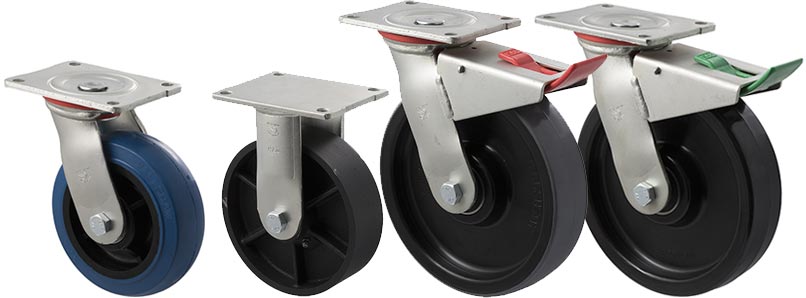

Heavy duty castors - H Series

Able to carry up to 600 kg each, the range of heavy duty H Series castors are available in 150 and 200 mm sizes, and in a wide range of wheel types.

Forks can also be purchased separately

Load rating: 400–600 kg
Wheels: Blue high resilience elastomer, cast iron, hard nylon, polyurethane
Forks: Swivel, fixed plate and bolt hole zinc plated Core Coat™ forks with or without total brake or direction lock. Core Coat™ lacquer provides best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing.
Warranty: Three years
Country of origin: Australian made

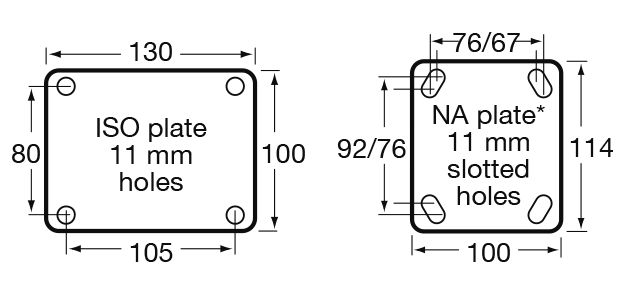

Mount dimensions:
H Series castor mount drawing

Castor and wheel options

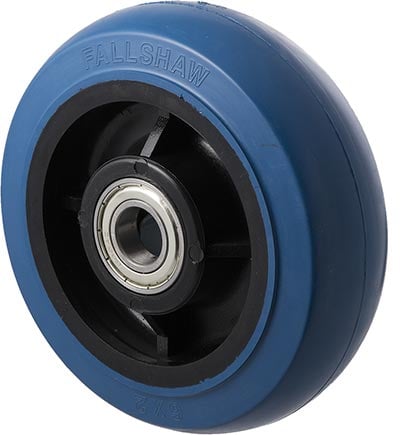

OBQ wheel

OBQ wheel

Max load: 400 kg

Material: Blue high resilience elastomer

Bearing: Precision ball bearing

Thread guard: No

150 mm castors

200 mm castors

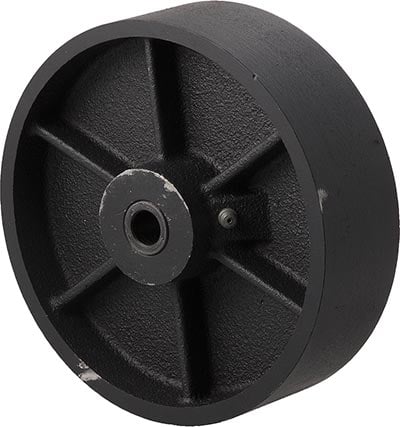

WCI wheel

WCI wheel

Max load: 400 kg

Material: Cast iron

Bearing: Plain bearing

Thread guard: No

150 mm castors

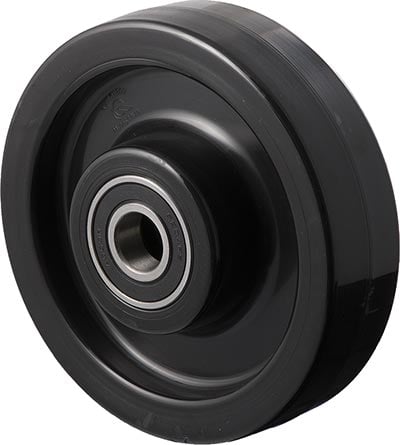

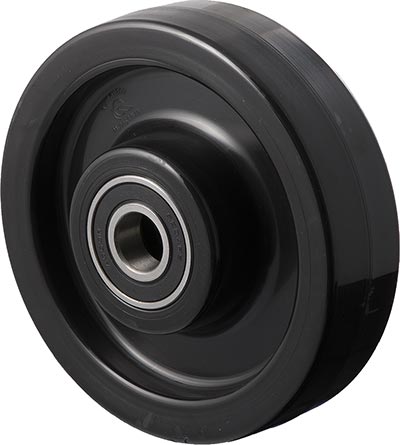

WNQ wheel

WNQ wheel

Max load: 600 kg

Material: Hard nylon

Bearing: Precision ball bearing

Thread guard: No

150 mm castors

200 mm castors

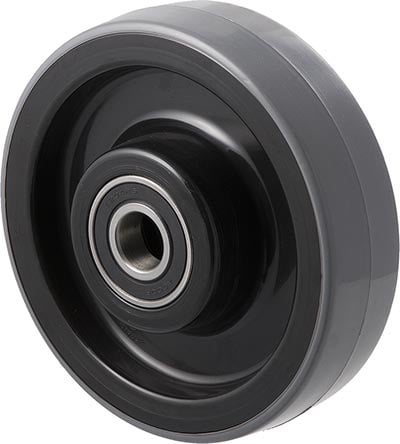

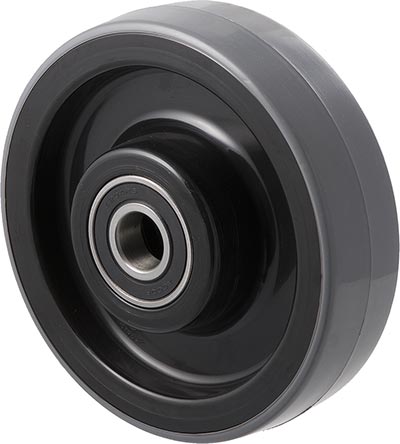

WUQ wheel

WUQ wheel

Max load: 600 kg

Material: Polyurethane

Bearing: Precision ball bearing

Thread guard: No

150 mm castors

200 mm castors

Browse the entire range

Browse the entire H Series range of wheels, castors and forks in our online store.

H Series castor range
