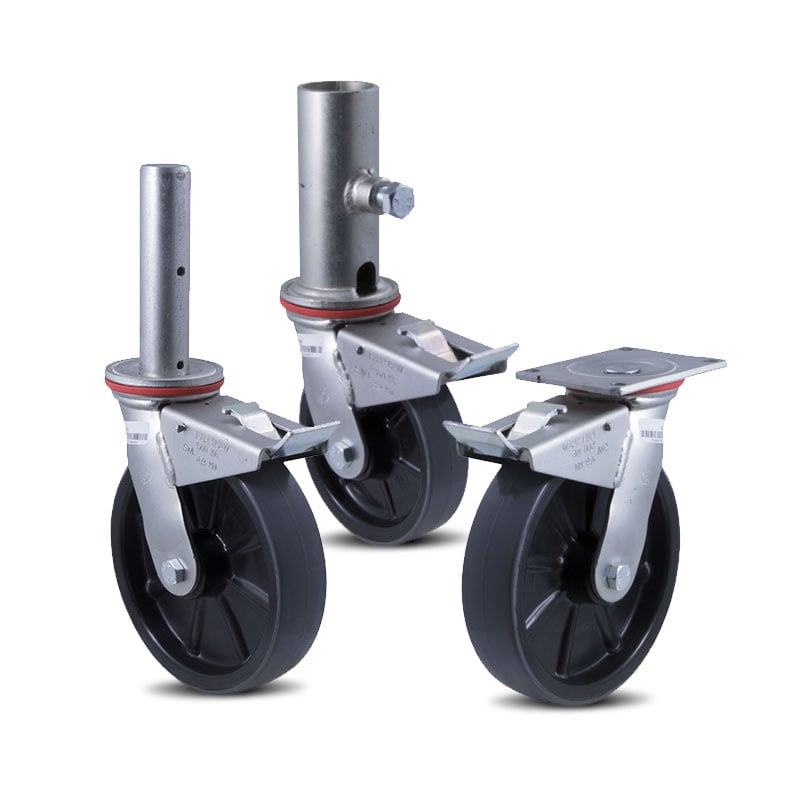

H Series scaffold castors

Heavy duty scaffold castors

Australian made scaffold/platform castor wheels

Able to carry up to 500 kg each, the range of H Series scaffold castors are available in 150 and 200 mm sizes, and in a wide range of mount types.

Fallshaw scaffolding castors meet OHS codes and Australian standards.

Load rating:

360–500 kg

Wheels:

Polyurethane on nylon (Fallshaw HUR wheel)

Forks:

Zinc plated Core Coat™ in bolt hole with pintle or ISO plate, with total brake configuration

Features:

  • Supplied with a test certificate validating compliance to Australian Standards (important for risk management documentation).

  • The static collapse load exceeds three times the working load (certificate available). Wheels 150 mm (6") and 200 mm (8") diameter to safely pass over obstacles without snagging and causing scaffold to tip.

  • The stem of the castor is 150 mm (6") long, with not more than 3 mm (1/8") of clearance to tube.

  • A means is provided for fixing castor to tube, so it will not fall out when lifted.

  • An effective wheel/swivel brake is fitted to ensure maximum stability.

  • Sockets are to suit 48.3 mm OD tube, while spigots (solid stems) are to suit 38.5 mm ID tube.

  • Core Coat™ lacquer provides best quality corrosion protection (150 hours of salt spray test).

Origin:

Made in Australia

Warranty:

Three years

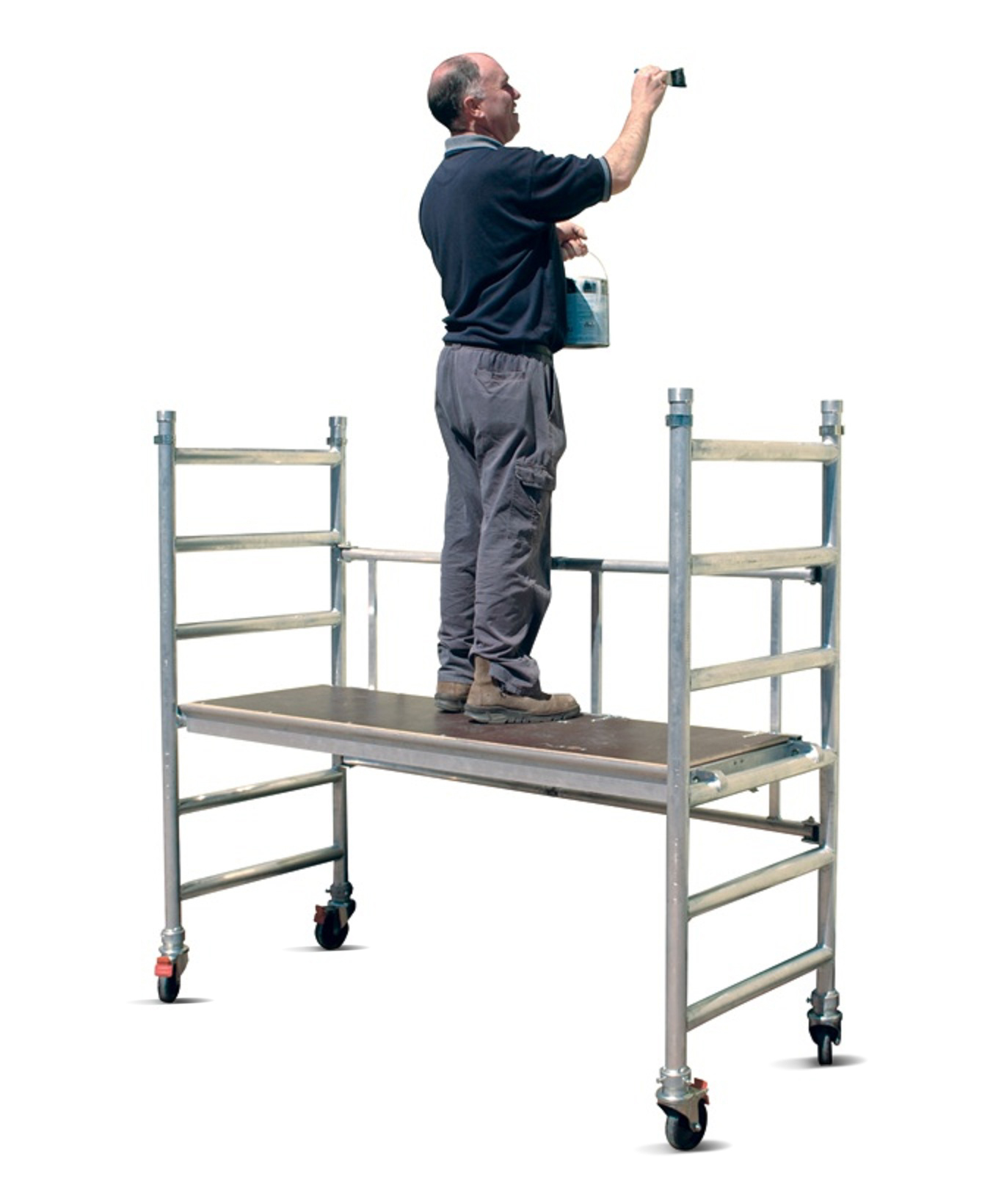

Fallshaw H Series castors on scaffolding

Castor options

Max load: 360–500 kg

Description: 51 mm socket mount to fit over 48.3 mm tubes

Max load: 360–500 kg

Description: 130 mm x 100 mm ISO plate

Max load: 360–500 kg

Description: 38 mm solid stem mount with fully welded cup. Suits 38.5 mm ID tube.

Max load: 360–500 kg

Description: 38 mm stem mount to fit into tubes. Suits 38.5 mm ID tube.
