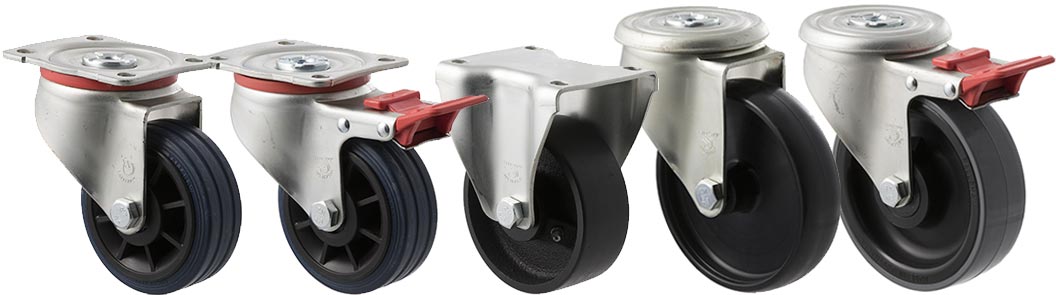

General duty castors: J Series
Durable industrial castors for trolleys, equipment and commercial applications
Designed and manufactured in Australia, Fallshaw J Series castors provide reliable, long-lasting mobility for industrial and commercial equipment. With load capacities ranging from 150 kg to 300 kg per castor, J Series is built to handle demanding everyday applications where strength, durability and dependable performance matter.
Available in 100 mm and 125 mm wheel diameters, the J Series offers a choice of polyurethane, hard nylon, cast iron and blue high-resilience elastomer wheels to suit different loads, floor surfaces and operating environments.
Whether you're manufacturing industrial trolleys, building mobile workstations or maintaining warehouse equipment, J Series castors offer a durable solution backed by over 100 years of Australian manufacturing experience and a three-year warranty.
Technical specifications
| Load rating: | 150–300 kg per castor |
| Wheels: | Blue high resilience elastomer, polyurethane, hard nylon, cast iron |
| Forks: | Swivel, fixed plate and bolt hole zinc plated Core Coat™ forks with or without total brake or direction lock. Core Coat™ lacquer provides best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing. |
| Warranty: | Three years |
| Country of origin: | Made in Australia |

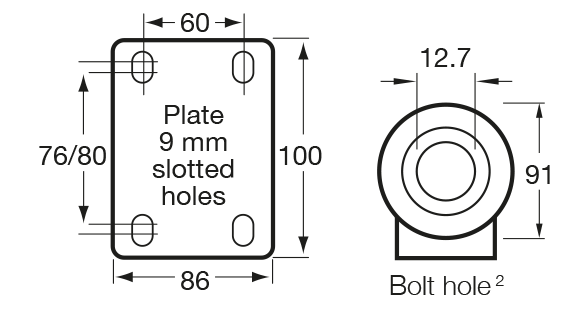

Mount dimensions:
|
|
Castor and wheel options

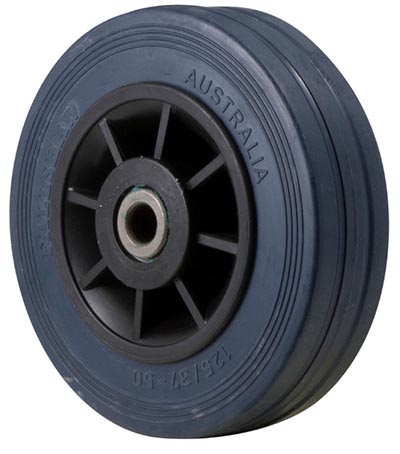

JBR wheel
Max load: 150–180 kg
Material: Blue high resilience elastomer
Bearing: Roller bearing
Thread guard: Optional
100 mm castors
125 mm castors

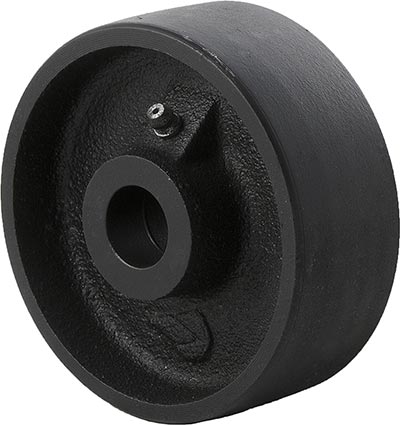

JCR wheel
Max load: 230 kg
Material: Cast iron
Bearing: Roller bearing
Thread guard: No
100 mm castors

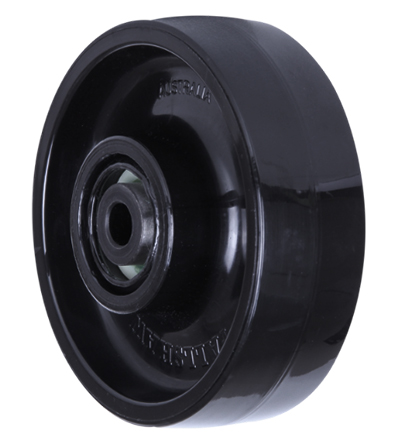

JNR wheel
Max load: 300 kg
Material: Hard nylon
Bearing: Roller bearing
Thread guard: Optional
100 mm castors
125 mm castors

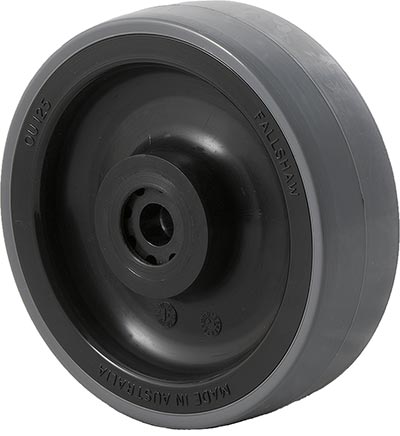

JUR wheel
Max load: 300 kg
Material: Polyurethane on nylon
Bearing: Roller bearing
Thread guard: Optional
100 mm castors
125 mm castors
J series castors on a supermarket fruit display.
A plant stand fitted with J Series castors at a retail store
J series castors on scaffolding at a stadium
Road cases fitted with J Series castors
Built for demanding industrial and commercial applications
J Series castors are suitable for a wide range of equipment that requires reliable movement under heavier loads.
Typical applications include:
-
Industrial and warehouse trolleys: Durable castors for heavy-duty platform trolleys, stock carts and materials handling equipment.
-
Manufacturing equipment: Support mobile machinery, production equipment, workstations and assembly benches.
-
Commercial storage and display systems: Provide reliable mobility for storage racks, display units and mobile shelving.
-
Workshop equipment: Suitable for tool cabinets, equipment stands, workbenches and maintenance trolleys.
-
Garden centres and nurseries: Provide mobility for plant display racks, nursery equipment and mobile platforms.
-
Events and performing arts: Stage scaffolding, production equipment and road cases.
-
Custom equipment manufacturing: A versatile castor range for manufacturers incorporating mobility into their equipment designs.
Why choose J Series?
High load rating (up to 300 kg per castor) for heavy-use equipment and environments.
Variety of wheel materials (hard nylon, polyurethane, cast iron, elastomer) to suit load, surface and noise requirements.
Australian-made with zinc plated or Core Coat™ forks offering corrosion resistance and long operational life.
Suitable sizes (100 mm & 125 mm) provide flexibility for different platforms and trolleys.
