Light Duty Swivel Castors with Small Wheels | Fallshaw Wheels & Castors

Light duty castors: L Series

Swivel & Fixed Small Castor Wheels

Light duty swivel and fixed castors ideal for light loads.

L Series are small castors with 50 mm diameter wheels, and available with a range of forks including fixed or swivel (plate or bolt hole options) and with or without brakes.

The wheels are available in thermoplastic elastomer (TPE) or hard nylon. These mini castors can carry up to 30 kg each and are suitable for light duty trolleys and carts on smooth floors.

Load rating: 30 kg
Wheels: TPE (LJP) or hard nylon (LNN)
Forks: Nickel finish in swivel plate, fixed plate, bolt hole and wheel brake configurations
Warranty: Three years
Diameter x tread: 50 mm x 20 mm
Hub x bore: 25 mm x 6 mm
Bearing: Plain
Thread guard: No

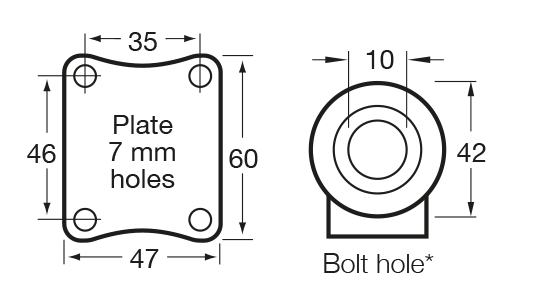

Mount dimensions:
L Series castor mount drawing

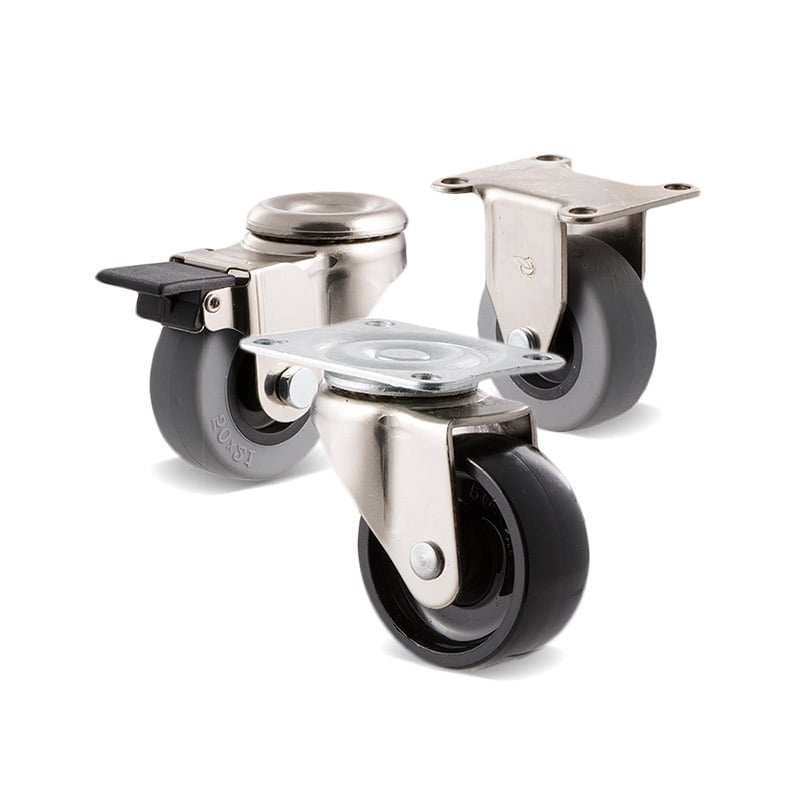

Light duty mini castors: L Series

L Series castor options

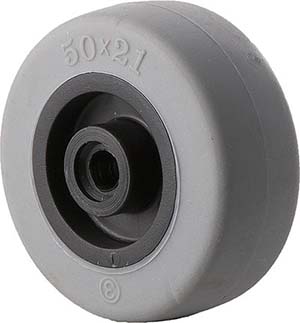

LJP wheel

LJP wheel

Max load: 30 kg

Material: Thermoplastic elastomer

Bearing: Plain bearing

Thread guard: No

50 mm castors

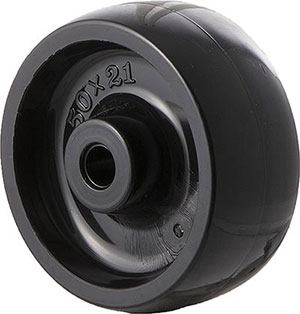

LNN wheel

LNN wheel

Max load: 30 kg

Material: Hard nylon

Bearing: Plain bearing

Thread guard: No

50 mm castors

Browse the entire range

Browse the entire L Series range of wheels and castors in our online store.

Shop online


Bulk discounts available

Buy in bulk and save with our competitive price quantity breaks.

Quantity: 1-49 50-99 100-299 300-499 500+
Price discount: 0 5% 8% 10% 12%

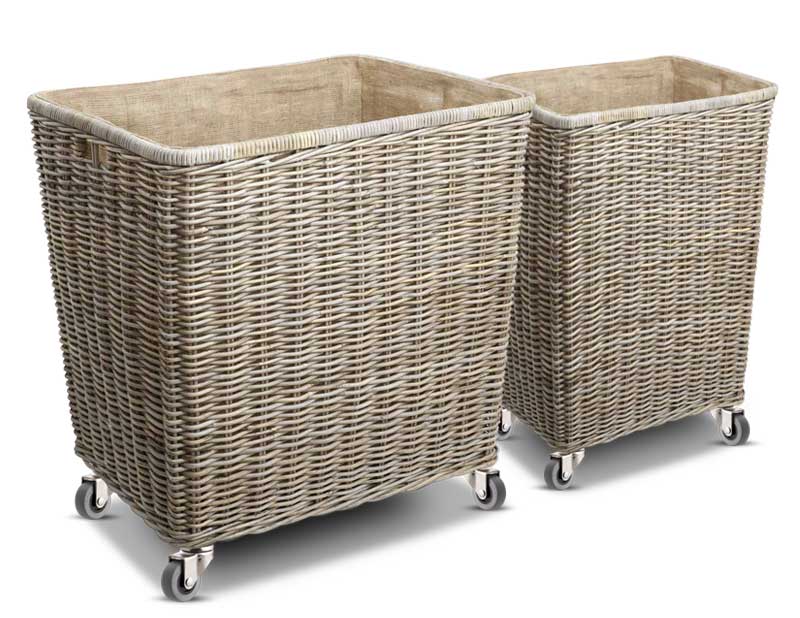

Small castors for linen baskets

Light duty castors (L Series) fitted to laundry baskets
