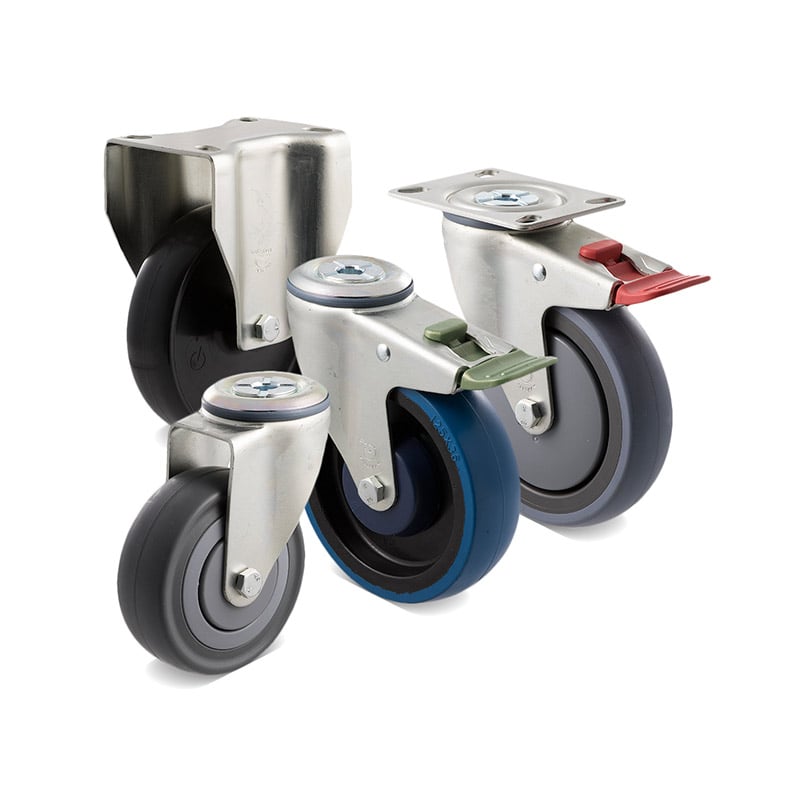

Medium Duty Castors: M Series (85–200 kg capacity)
General duty castors
Able to carry up to 200 kg each, the versatile M Series castors are available in 75, 100 and 125 mm sizes, and in a wide range of wheel types.
Forks can also be purchased separately
| Load rating: | 85–200 kg |
| Wheels: | Blue or grey high resilience elastomer, thermoplastic elastomer, anti-static/conductive, hard nylon, grey rubber, polyurethane. |
| Forks: | Swivel, fixed plate and bolt hole zinc plated Core Coat™ forks with or without total brake or direction lock. Core Coat™ lacquer provides best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing. |
| Warranty: | Three years |
| Country of origin: | Made in Australia |

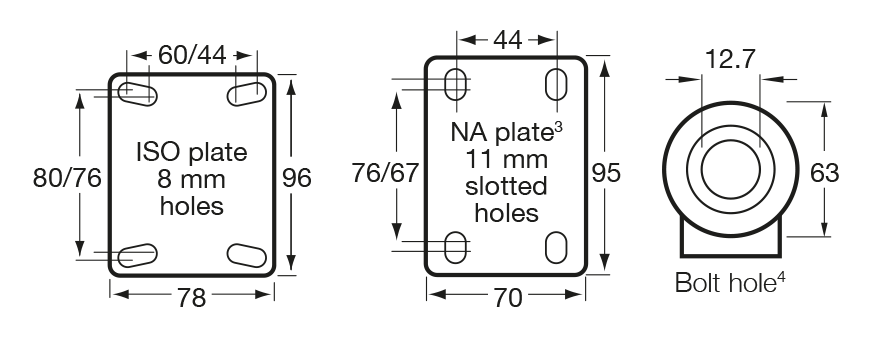

Mount dimensions:
|
|
Castor options
CBQ wheel
Max load: 85–100 kg
Material: Blue high resilience elastomer
Bearing: Precision ball bearing
Thread guard: Yes
75 mm castors
100 mm castors
125 mm castors
MBQ wheel
Max load: 140–150 kg
Material: Blue high resilience elastomer
Bearing: Precision ball bearing
Thread guard: Yes
100 mm castors
125 mm castors

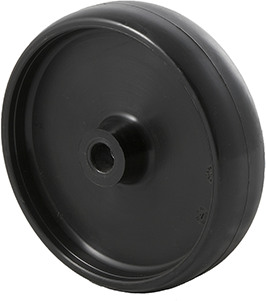

MNN wheel
Max load: 150 kg
Material: Hard nylon
Bearing: Plain
Thread guard: No
75 mm castors
100 mm castors
125 mm castors
DNQ wheel
Max load: 200 kg
Material: Hard nylon
Bearing: Precision bearing
Thread guard: No
125 mm castors
MJQ wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
75 mm castors
100 mm castors
125 mm castors

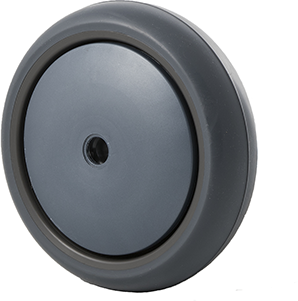

MAQ wheel
Max load: 85 kg
Material: Conductive thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Features
Designed for use in Electrostatic Discharge (ESD) environments as part of an effective ESD Control Program, our conductive non-marking wheels can be assembled into our M series castors.
With a conductivity of <106, our conductive wheels exceed the requirements of ANSI/ESD S20.20–1999 for mobile equipment in protected areas, which specify 109 as the maximum level of resistance.
Installation of conductive wheels
Conductive wheels must be properly installed to ensure a conductive path from the trolley leg, through the stem, and the castor and the axle and the bearing, and through the centre and tyre. Solid metal pintles will provide such a conductive path.
If plastic expanding stems are selected, they will need to be installed with a copper wire attached to the stem and wrapped between the adaptor and tube inner to ensure a conductive path.
100 mm castors
125 mm castors

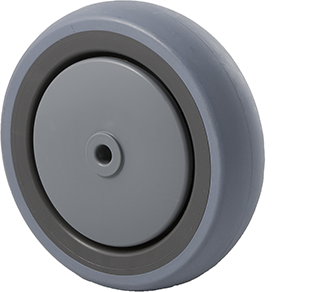

STQ wheel
Max load: 100 kg
Material: Grey energy absorbent elastomer
Bearing: Precision ball bearing
Thread guard: Yes
75 mm castors
100 mm castors
125 mm castors

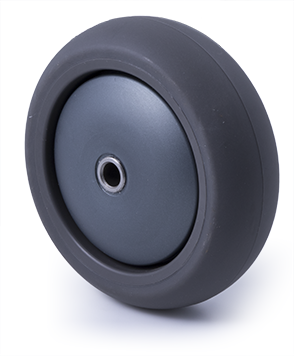

QUQ wheel
Max load: 100 kg
Material: Polyurethane
Bearing: Precision ball bearing
Thread guard: Yes
75 mm castors
100 mm castors
125 mm castors
Browse the entire range
Browse the entire M Series range of wheels, castors and forks in our online store.
Hospital food trolleys fitted with energy absorbant M Series castors.

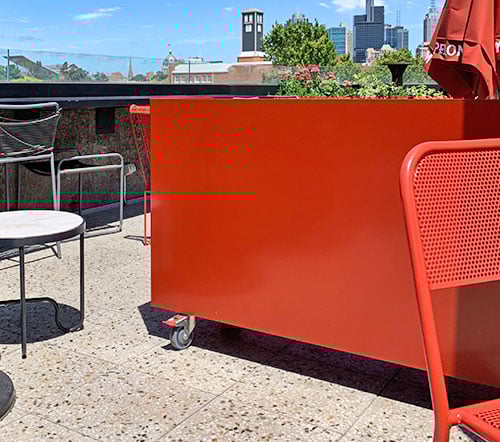

Outdoor cafe equipment with M Series castors.

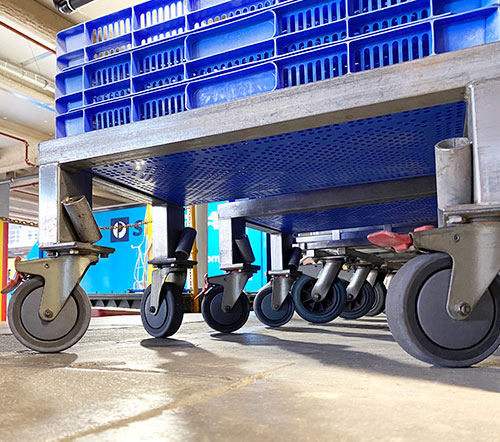

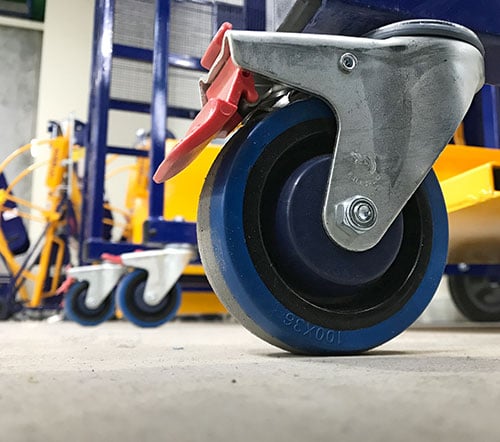

Materials handling equipment fitted with high-resilience rubber M Series castors.

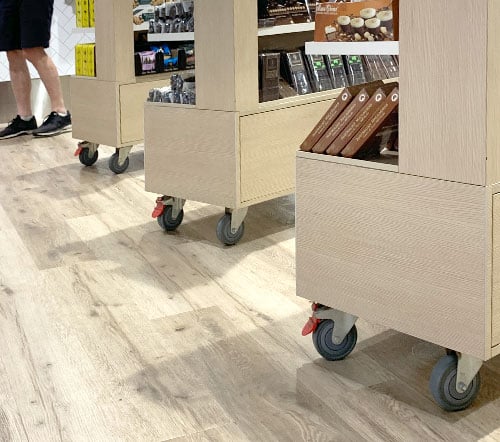

Retail display units fitted with grey rubber M Series castors.
