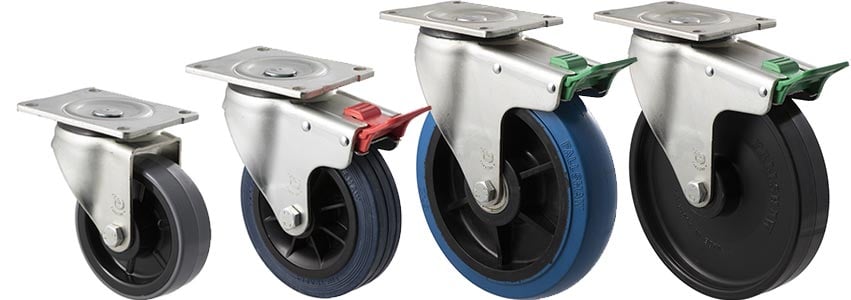

Heavy Duty Castors: O Series

Tough wheels for heavy loads

Able to carry up to 500 kg each, the versatile and tough O Series castors are available in 100, 125, 150 and 200 mm sizes, and in a wide range of fork types including swivel plate, fixed plate, total brake and direction lock. Depending on your application, various wheels are also available including blue or grey high-resilience elastomer, polyurethane (PU) on nylon or hard nylon. Manufactured in Australia with premium corrosion-resistant forks and backed by a three-year warranty, the O Series ensures reliability, durability and smooth movement even under heavy loads.

Suitable applications include trolleys, carts, shop-fitting display, retail, equipment, waste bins and much more!

Typical Heavy Duty Uses

• Linen carts: Effortlessly mobilise bulky linen trolleys in hotels, hospitals or commercial laundries with heavy-duty castors that support frequent movement, heavy loads and transport between floors.

• Roll cages: Upgrade your storage cages and roll-containers with castors built to carry substantial loads while ensuring smooth rolling, minimal downtime and floor-friendly operation in warehouses or retail back-of-house.

• Bell carts: Enhance hospitality operations with mobile bell carts that glide quietly and reliably, even when fully loaded, enabling fast service and efficient guest mobility.

Why choose O Series?

• High load rating (230-500 kg each) suitable for heavy-use trolley applications and larger mobile units.

• Variety of wheel materials (blue/grey high-res resilience elastomer, polyurethane on nylon, hard nylon) to match load, surface and noise requirements.

• Available in wheel sizes 100 mm to 200 mm, offering flexibility for different load footprints and mobility needs.

• Australian-manufactured from the respected Fallshaw brand, with engineered forks (zinc-plated Core Coat™ finish) for better corrosion protection and service life.

Forks can also be purchased separately

Load rating:	230–500 kg

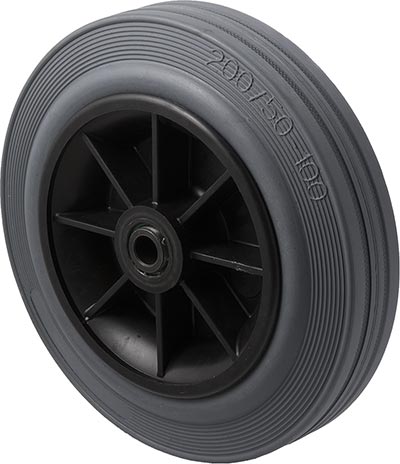

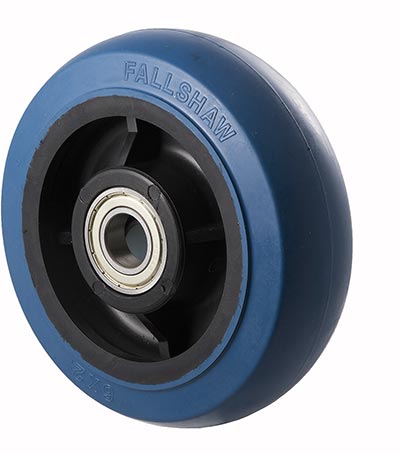

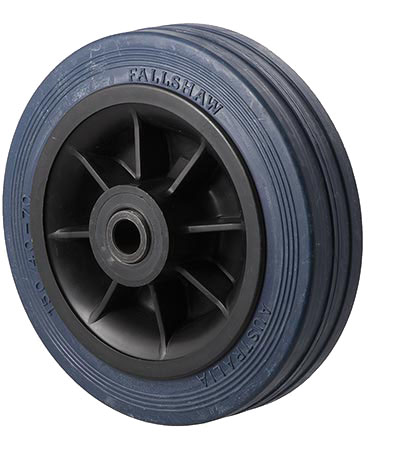

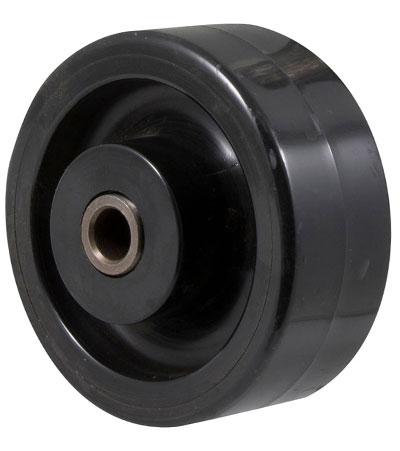

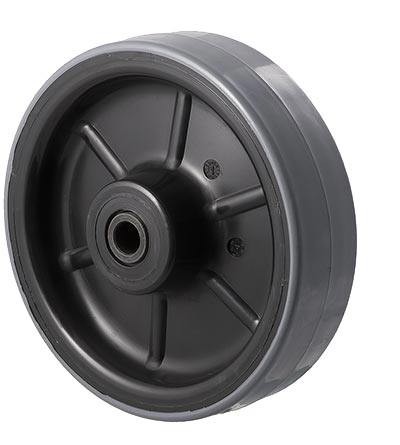

Wheels:	Blue and grey high resilience elastomer, polyurethane on nylon, hard nylon
Forks:	Swivel, fixed plate and bolt hole zinc plated Core Coat™ forks with or without total brake or direction lock. Core Coat™ lacquer provides best quality corrosion protection, with no white or red rust after 150 hours of salt spray testing
Warranty:	Three years
Country of origin:	Made in Australia

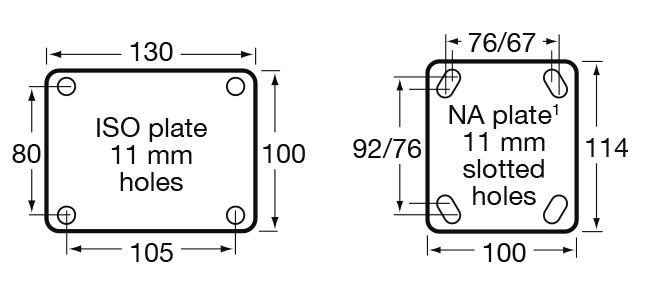

Mount dimensions:
