Shower Chair Castors, Australian-made | Fallshaw Wheels & Castors

Powder-coat castors—M Series

Corrosion-resistant castors

Shower chair castors, or castors for corrosive or wet environments.

Zinc plated and then powder-coated for better corrosion resistance from substances such as alkaline soaps and other cleaning agents, these castors have stainless steel bottom races and twin ball races with stainless steel balls, covered by a diaphragm shroud to stop water entering from above).

The wheels are available with a plain PBT (corrosion free) bush or a stainless steel precision bearing with thread guards to prevent the build-up of hair and lint.

Able to carry up to 200 kg each, the M Powder-coat range of castors are available in 125, 150 and 175 mm sizes, and in a wide range of wheel types.

Typical applications

Suitable for hospitals, medical, aged care, veterinarians.

Forks can also be purchased separately

Load rating: 85–200 kg.
Wheels: White nylon, thermoplastic elastomer, grey rubber, polyurethane.
Forks: Powder-coated with stainless steel race and brake rivet, in bolt hole, total brake and direction lock configurations.
Features:
  • Resistant to corrosion from alkaline soaps and cleaning agents, making them suitable for shower chairs and similar applications.

  • Twin ball race with stainless steel balls covered with a buffer (five sizes available—see below) to lock out water.

  • Powder-coat colour Anodic Natural Matte.

  • Medical Trinity;™ red colourway pedal.

  • Stainless steel screw (domed head axle).

  • Zinc plated pintle bolt.

  • Can be fitted with M12 pintle bolts with expanding adaptors or solid pintles.

Warranty: One year warranty in shower chair applications.
Three year warranty in general use (subject to conditions of use).
Country of origin: Australian made.
Mount dimensions:

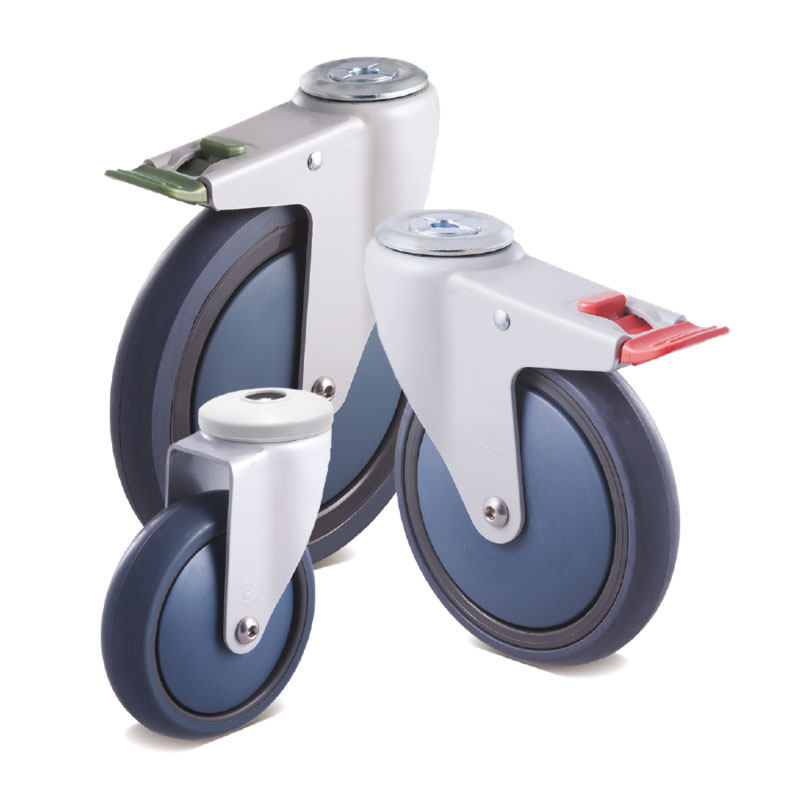

Corrosion-free Powder coated castors

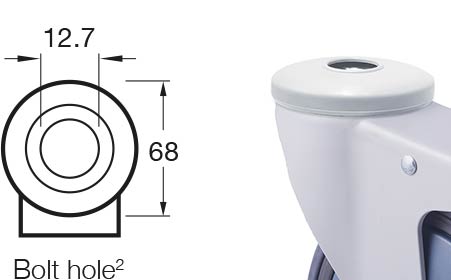

M Powder coated castor mount drawing


Buffer options

-BUF22: Suit -ER19 or -AR19

-BUF25: Suit -ER22 or -AR22

-BUF28: Suit -ER28 or -AR28

-BUF32: Suit 33 mm OD of hollow stem

-BUF33.5: Suit 34 mm OD of hollow stem

Browse buffer caps

Powder coated castor options

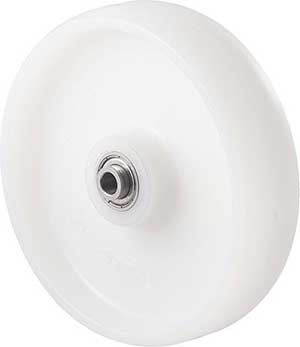

DNC wheel

DNC wheel

Max load: 200 kg

Material: White nylon

Bearing: Stainless steel precision ball bearing

Thread guard: No

125 mm castors

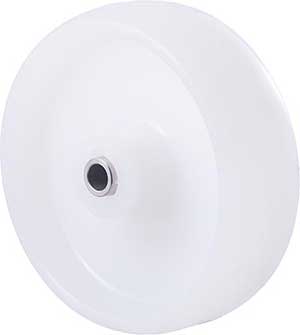

MNN white wheel

MNN white wheel

Max load: 150 kg

Material: White nylon

Bearing: Plain bearing SS

Thread guard: No

125 mm castors

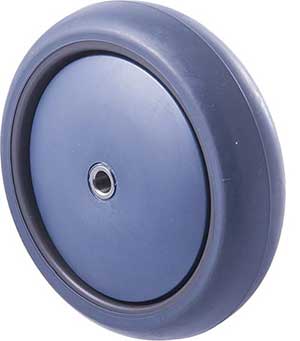

MJC wheel

MJC wheel

Max load: 85 kg

Material: Thermoplastic elastomer

Bearing: Stainless steel precision ball bearing

Thread guard: Yes

Also available in anti-static, or with plain bearing

125 mm castors

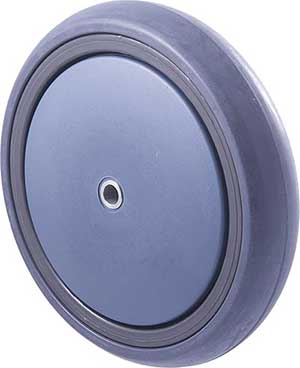

QTC wheel

QTC wheel

Max load: 150 kg

Material: Thermoplastic elastomer

Bearing: Stainless steel precision ball bearing

Thread guard: Yes

150 mm castors

175 mm castors

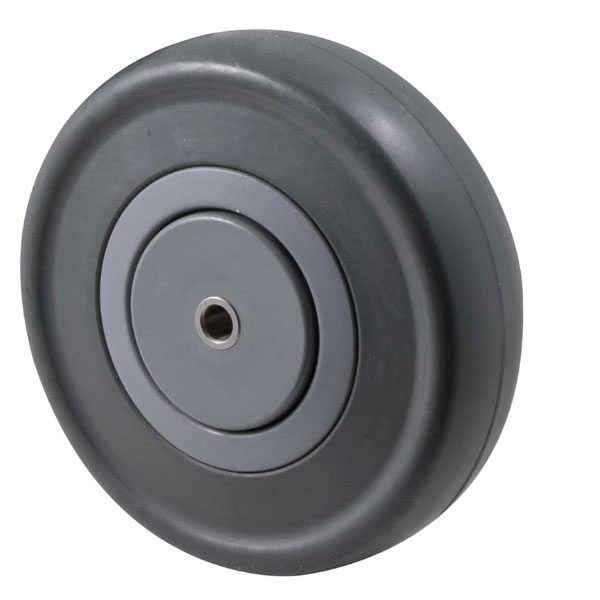

MSC wheel

MSC wheel

Max load: 150 kg

Material: Grey rubber

Bearing: Deep groove ball bearing

Thread guard: Yes

125 mm castors

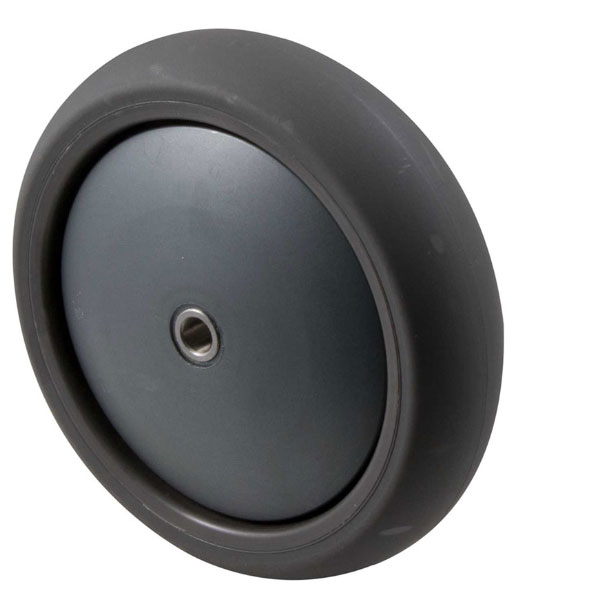

QUC wheel

QUC wheel

Max load: 100 kg

Material: Polyurethane tyre on polypropylene centre

Bearing: Stainless steel precision ball bearing

Thread guard: Yes

125 mm castors


Chemical resistance of wheels

A chemical resistance table which describes the performance of various materials when exposed to corrosive conditions.

Resistance: G = Good, F = Fair, P = Poor

For more information on chemical resistance, click the button below.

Chemical resistance info

Chemical

PU

Nylon

Rubber

TPE
Grey rubber

Cast iron

Sulphuric acid 10%

G

G

P

G

P

Hydrochloric acid 10%

F

P

P

F

P

Nitric acid 10%

P

P

P

F

P

Methyl alcohol

F

G

F

G

G

Sodium hydroxide 20%

F-P

G

F

G

G

Gasoline 100%

G

G

P

F

G

Ethylene glycol

G

G

P

F

G

Brake fluid

F-P

G

P

G

G

Sodium chloride (salt)

incl. marine environments

G

G

G

G

G

Carbon tetrachloride

F

P

P

G

F

Fresh water immersion

G

G

G

G

G

Dry heat 10%

G

G

G

G

G

Outdoor weathering

G

G

G

G

G

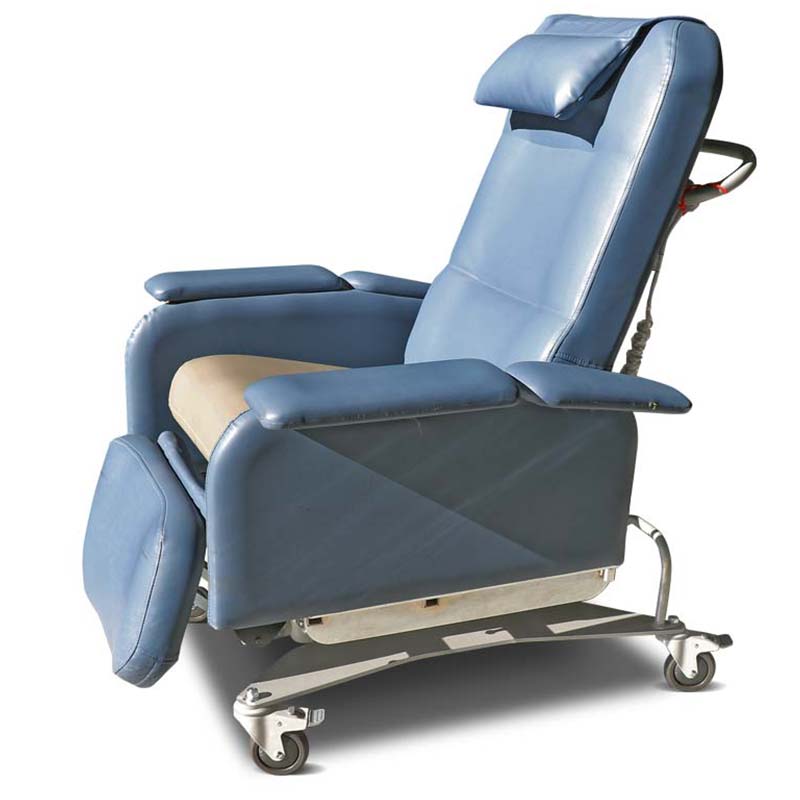

Corrosion-free Castors for treatment chairs

Non-corrosive castors for treatment chairs

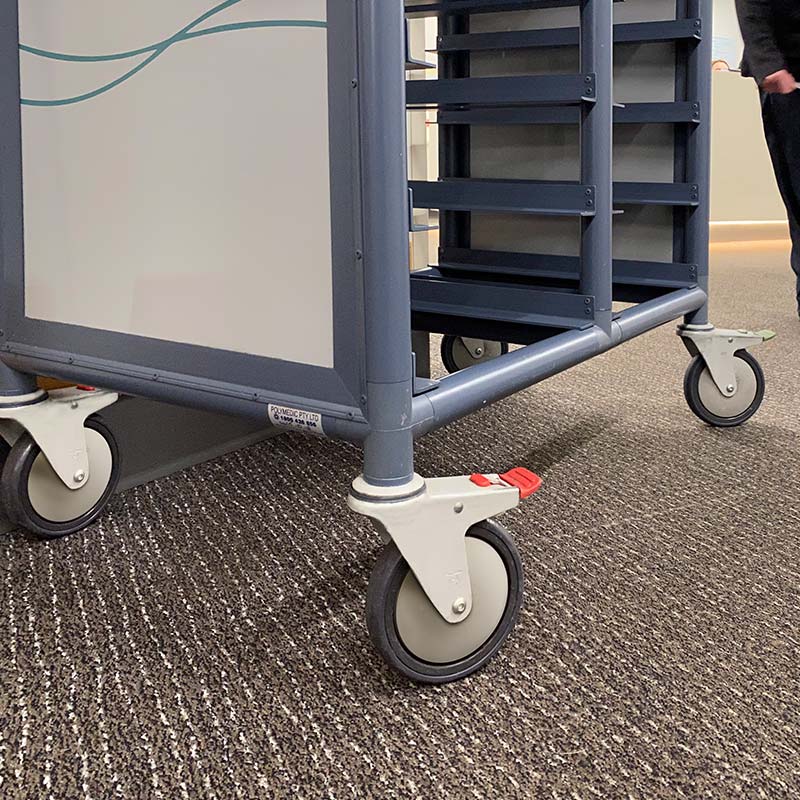

Corrosion-free Castors for food trolleys

Non-corrosive castors for food trolleys

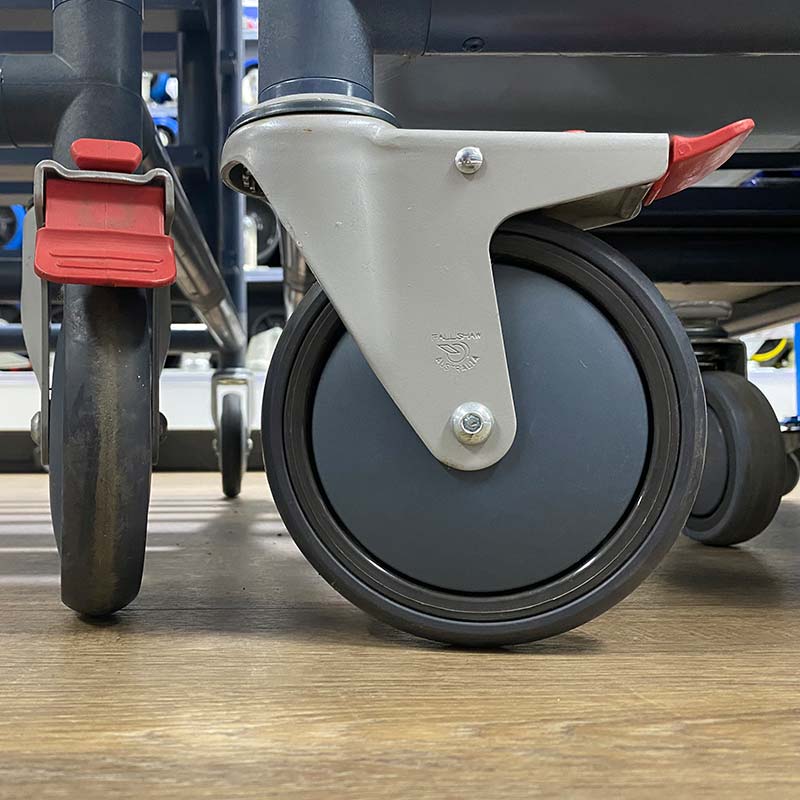

Corrosion-free Castors for trolleys
