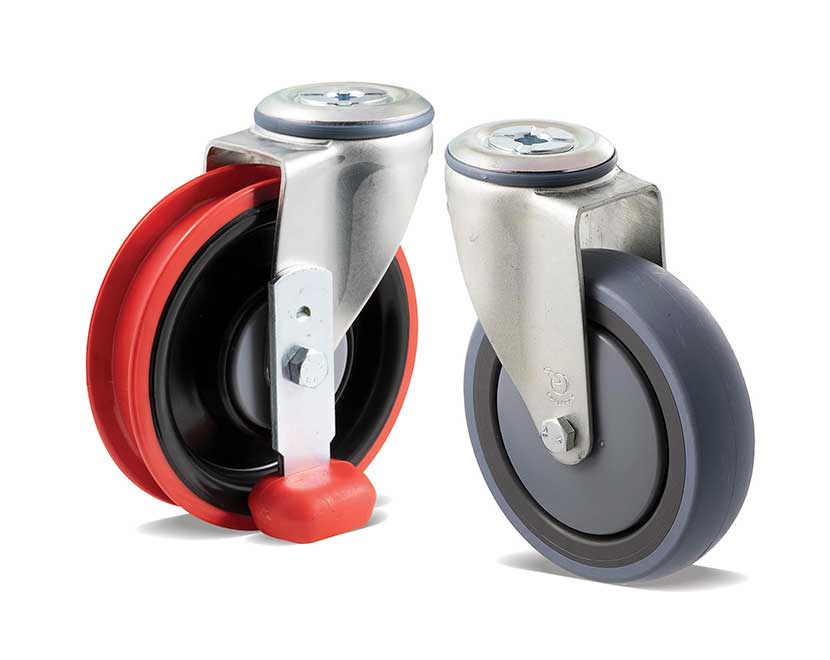

Supermarket trolleys and travelator castors

Castors, wheels and accessories

Features

  • Supplied in kits or individual components.
  • UV stabilized to prevent fading and embrittlement outdoors.
  • Non-standard colours available under minimal order quantity.
  • Supermarket trolley components are made-to-order (non-stock items).
  • Fallshaw travelator wheels are tested to rigorous standards under ISO 22881:2004 (AS1961.5-2004).

Travelator trolley castors

Travelator trolleys must brake securely when traversing up and down steep travelators. If only one brake leg is installed on travelator castors then trolleys may not brake securely, resulting in a runaway trolley that can cause injury or death. In busy commercial environments such as supermarkets and department stores, the risk of injury or death is even greater. For this reason, Fallshaw mandate the use of two walk-way brake legs per travelator castor to achieve reliable, secure braking and safety.

Forks can also be purchased separately

Load rating: 85 to 100 kg
Wheels: UV stabilized to prevent fading and embrittlement outdoors.
  • Grey rubber, flat profile, precision bearing with thread guard.
  • Grey rubber, round profile, precision bearing with thread guard.
  • Black and red high-strength polyurethane (PU) on nylon, precision bearing, buffer cap.
Forks: Zinc plated Core Coat™ in swivel plate and fixed plate configurations.
Warranty: One year
Country of origin: Australian made

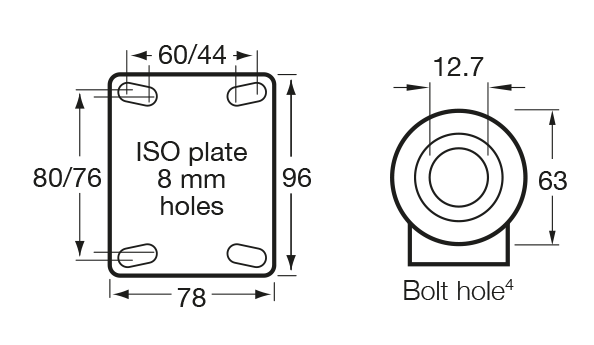

Mount dimensions:
M Series castor mount drawing
Supermarket trolleys and travelator castors

Castor options

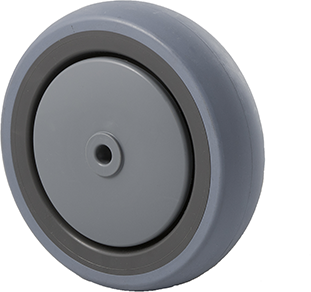

STQ wheel

STQ wheel

Max load: 100 kg

Material: Grey energy absorbent elastomer

Bearing: Precision ball bearing

Thread guard: Yes




125 mm castors

MSQ wheel

MSQ wheel

Max load: 140–150 kg

Material: Grey rubber

Bearing: Precision ball bearing. (Also available with plain bearing—MSA125G)

Thread guard: Yes




125 mm castors

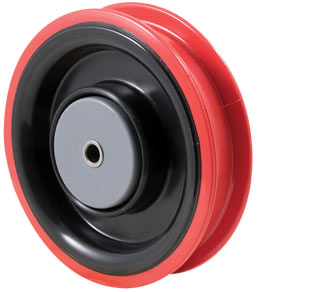

SPQ wheel

SPQ wheel

Max load: 60 kg

Material: Black and red high-strength PU on nylon

Bearing: Precision ball bearing

Thread guard: Yes




125 mm castors

Accessories

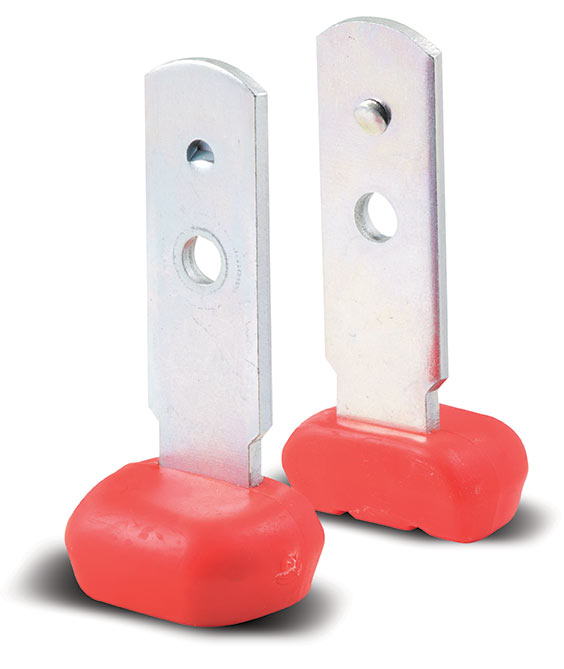

Walk-way brake leg

SMBLRED
Walk-way brake leg

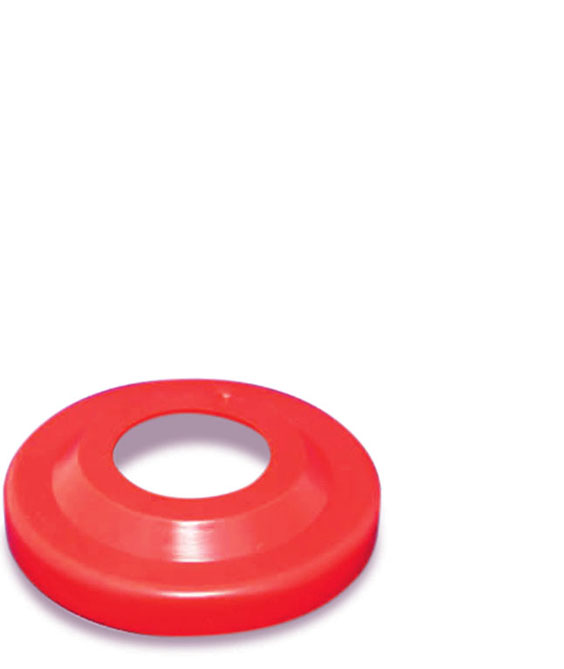

Castor buffer cap

SMBUFRED
Castor buffer cap

The SMBLRED and SMBUFRED are both suitable for travelator castors.


Non-standard colours available

Non-standard colours are available with a minimum order quantity of 500 pcs. The range includes:

Wheels

  • Grey (order code: SPQ125GGRY)
  • Blue and white (order code: SPQ125GBWH).

Walk-way brake legs

  • Grey (order code: SMBLGRY)
  • Blue (order code: SMBLBLU).

Castor buffer caps

  • Grey (order code: SMBUFGRY)
  • Blue (order code: SMBUFBLU).
