Adjustable leveling feet and tube ends
Multi-adjustable pedestal feet to stabilise machinery, equipment & furniture
Keep your equipment sturdy and level with our range of adjustable feet.
Featuring a special insert in the base, our pedestal feet are designed to absorb vibrations, ensuring your machinery stays in place. Whether you need feet for heavy machinery or small appliances, we are bound to have the right solution for you.
Made from mild/stainless steel and reinforced nylon ensures long-lasting durability and performance and resistance to wear-and-tear and/or corrosion. Suitable for use in a wide range of industries including commercial, industrial, workshop, factory or kitchen/food.
Knock-in tube ends
To complement our adjustable feet range, we also offer inserts for round or square tubes, which can be turned down to fit heavier wall RHS. Our range of tube ends ensures that you can find the perfect fit for your equipment. The special insert in the base helps to absorb vibration and means your machinery will stay exactly where you put it. Browse our range of knock-in tube ends below.

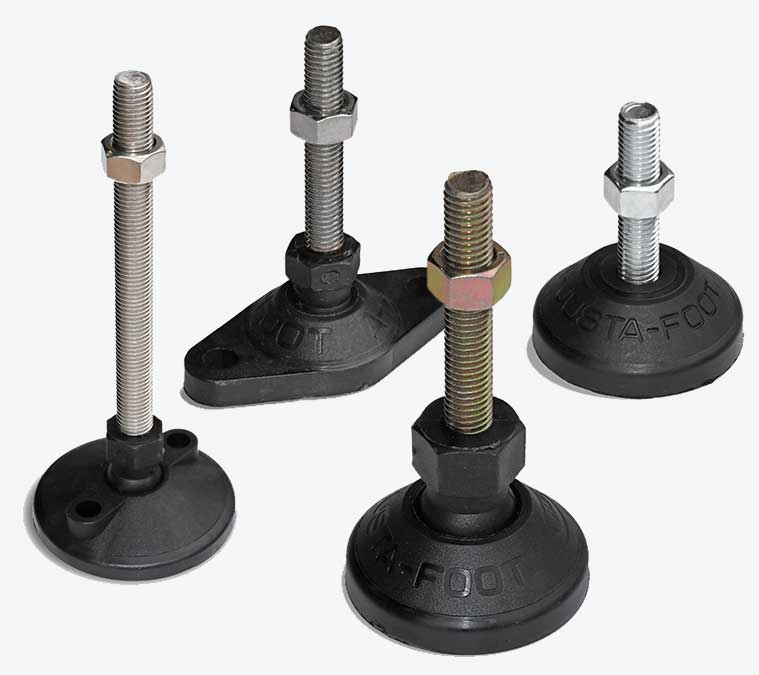

Leveling feet styles
Available in styles: Ball-joint, bolt-down and fixed .
Features across the range
Available in mild and stainless steel.
Choice of ball joint, bolt-down ball joint or fixed feet.
Made in New Zealand.
10 year warranty.
Specifications
Base: Glass reinforced nylon – black
Ball: Glass reinforced nylon – black
Pad: Synthetic rubber shore 73
Stud: Mild steel-plated or stainless steel
Nut: Mild steel-plated or stainless steel
Maximum adjustable angle: 20 degrees
Shop online
Browse the entire range of adjustable feet and knock-in tube ends in our online store.

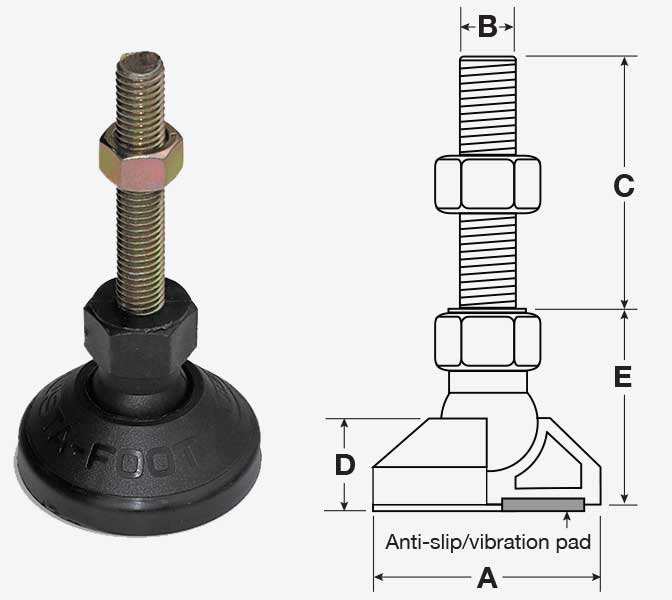

Ball-joint feet
Adjustable feet allow for variations in floor levels.
Key
A = Pad diameter
B = Thread diameter
C = Thread length
D = Pad height
E = Base height
Specifications
Mild steel 20 |
Stainless steel 21 |
Size |
A |
B |
C |
D |
E |
Load rating |
|---|---|---|---|---|---|---|---|---|
| AF20/40/ M8/60 |
- |
40 x M8 |
40 |
M8 |
60 |
20 |
33 |
350 |
| AF20/40/ M10/60 |
AF21/40/ M10/60 |
40 x M10 |
40 |
M10 |
60 |
20 |
33 |
500 |
| AF20/60/ M12/65 |
AF21/60/ M12/65 |
60 x M12 |
60 |
M12 |
65 |
20 |
51 |
800 |
| AF20/60/ M16/65 |
AF21/60/ M16/65 |
60 x M16 |
60 |
M16 |
65 |
25 |
51 |
1000 |
| AF20/60/ M16/150 |
- |
60 x M16 |
60 |
M16 |
150 |
25 |
51 |
1000 |
| - |
AF21/60/ M16/165 |
60 x M16 |
60 |
M16 |
165 |
25 |
51 |
1000 |
| AF20/60/ M20/100 |
AF21/60/ M20/100 |
60 x M20 |
60 |
M20 |
100 |
25 |
51 |
1000 |
| AF20/90/ M12/65 |
AF21/90/ M12/65 |
90 x M12 |
90 |
M12 |
65 |
25 |
51 |
1000 |
| AF20/90/ M16/65 |
AF21/90/ M16/65 |
90 x M16 |
90 |
M16 |
65 |
25 |
51 |
1000 |
| AF20/90/ M16/150 |
- |
90 x M16 |
90 |
M16 |
150 |
25 |
51 |
1000 |
| - |
AF21/90/ M16/165 |
90 x M16 |
90 |
M16 |
165 |
25 |
51 |
1000 |
| AF20/90/ M20/100 |
AF21/90/ M20/100 |
90 x M20 |
90 |
M20 |
100 |
25 |
51 |
1000 |

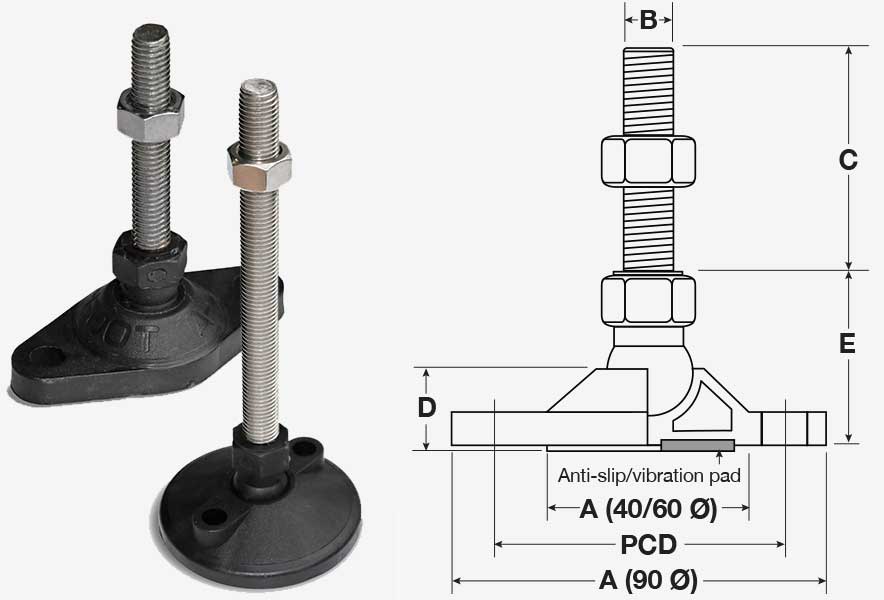

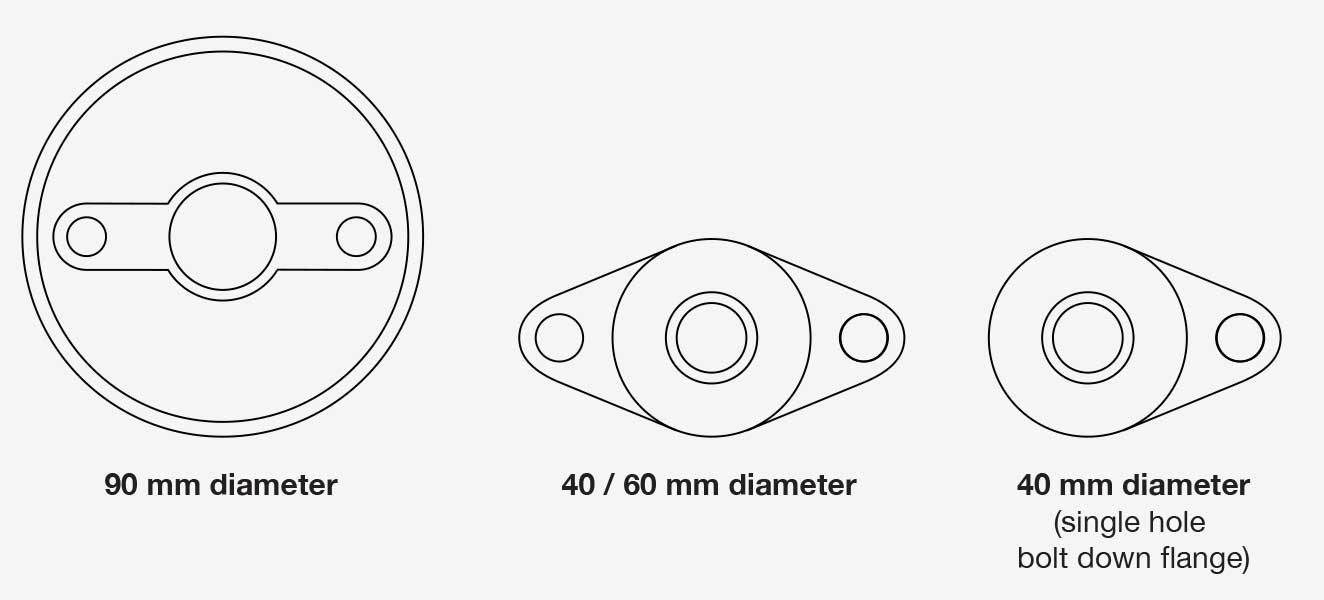

Bolt-down ball joint feet
Bolt-down feet can be fixed to the floor to provide stability.
Key
A = Pad diameter
B = Thread diameter
C = Thread length
D = Pad height
E = Base height
PCD = Pitch Circle Diameter (bolt holes)
Specifications
Mild steel 30 |
Stainless steel 31 |
Size |
A |
B |
C |
D |
E |
PCD |
Load rating |
|---|---|---|---|---|---|---|---|---|---|
AF30/40/ M8/60* |
- |
40 x M8 |
40 |
M8 |
60 |
20 |
33 |
60 |
350 |
AF30/40/ M10/60* |
AF31/40/ M10/60* |
40 x M10 |
40 |
M10 |
60 |
20 |
33 |
60 |
500 |
AF30/60/ M12/65 |
AF31/60/ M12/65 |
60 x M12 |
60 |
M12 |
65 |
23 |
51 |
80 |
800 |
AF30/60/ M16/150 |
- |
60 x M16 |
60 |
M16 |
150 |
23 |
51 |
80 |
1000 |
AF30/60/ M16/65 |
AF31/60/ M16/65 |
60 x M16 |
60 |
M16 |
65 |
23 |
51 |
80 |
1000 |
- |
AF31/60/ M16/165 |
60 x M16 |
60 |
M16 |
165 |
23 |
51 |
80 |
1000 |
AF30/60/ M20/100 |
AF31/60/ M20/100 |
60 x M20 |
60 |
M20 |
100 |
23 |
51 |
80 |
1000 |
AF30/90/ M12/65 |
AF31/90/ M12/65 |
90 x M12 |
90 |
M12 |
65 |
25 |
51 |
60 |
1000 |
AF30/90/ M16/65 |
AF31/90/ M16/65 |
90 x M16 |
90 |
M16 |
65 |
25 |
51 |
60 |
1000 |
AF30/90/ M16/150 |
- |
90 x M16 |
90 |
M16 |
150 |
25 |
51 |
60 |
1000 |
- |
AF31/90/ M16/165 |
90 x M16 |
90 |
M16 |
165 |
25 |
51 |
60 |
1000 |
AF30/90/ M20/100 |
AF31/90/ M20/100 |
90 x M20 |
90 |
M20 |
100 |
25 |
51 |
60 |
1000 |

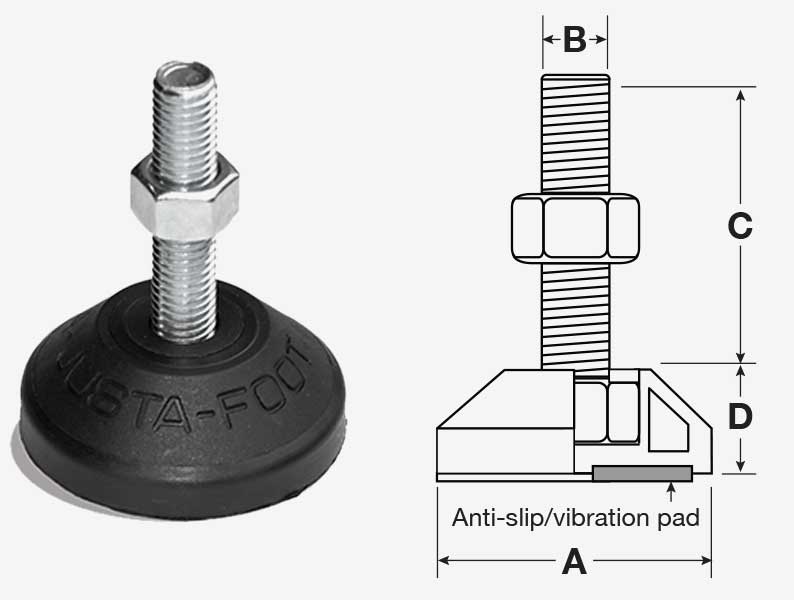

Fixed feet
Key
A = Pad diameter
B = Thread diameter
C = Thread length
D = Pad height
Specifications
Mild steel 40 |
Stainless steel 41 |
Size |
A |
B |
C |
D |
Load rating |
|---|---|---|---|---|---|---|---|
AF40/40/ M8/35 |
AF41/40/ M8/35 |
40 x M8 |
40 |
M8 |
35 |
20 |
350 |
AF40/40/ M10/35 |
AF41/40/ M10/35 |
40 x M10 |
40 |
M10 |
35 |
20 |
500 |
AF40/60/ M12/60 |
AF41/60/ M12/60 |
60 x M12 |
60 |
M12 |
60 |
20 |
800 |
Knock-In Tube Ends for Adjustable Feet
Please note: Tube ends are suitable for adjustable feet only, not castors. The internal thread is not long enough to support a thread on a castor – there would be too much 'leverage' inside the tube.
For tube ends used on 10 or 12 mm bolt hole castors, browse our range.

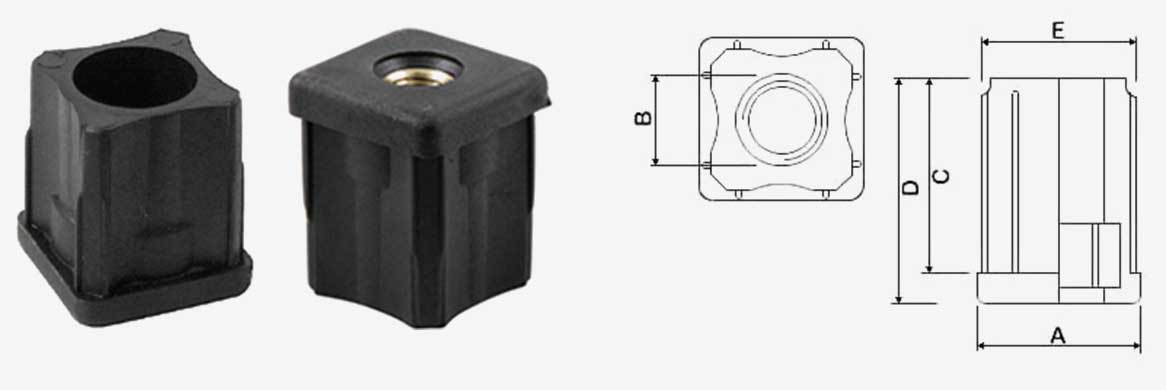

Square knock-in tube ends
Key
A = Outside tube (OD)
B = Internal thread
C = Knock-in length
D = Overall length
E = Internal size (ID)
Specifications
Mild steel 10 |
Stainless steel 11 |
Size |
A |
B |
C |
D |
E |
Load rating |
|---|---|---|---|---|---|---|---|---|
AF10/25/ M16 |
AF11/25/ M16 |
25 x M16 |
25 |
M16 |
39 |
44 |
22-23 |
250 |
AF10/30/ M8 |
AF11/30/ M8 |
30 x M8 |
30 |
M8 |
39 |
45 |
26-27 |
350 |
AF10/30/ M10 |
AF11/30/ M10 |
30 x M10 |
30 |
M10 |
39 |
45 |
26-27 |
350 |
AF10/30/ M12 |
AF11/30/ M12 |
30 x M12 |
30 |
M12 |
39 |
45 |
26-27 |
350 |
AF10/30/ M16 |
AF11/30/ M16 |
30 x M16 |
30 |
M16 |
39 |
45 |
26-27 |
350 |
AF10/32/ M8 |
AF11/32/ M8 |
32 x M8 |
32 |
M8 |
39 |
45 |
28-29 |
350 |
AF10/32/ M16 |
AF11/32/ M16 |
32 x M16 |
32 |
M16 |
39 |
45 |
28-29 |
350 |
AF10/35/ M8 |
AF11/35/ M8 |
35 x M8 |
35 |
M8 |
39 |
45 |
31-32 |
350 |
AF10/35/ M10 |
AF11/35 M10 |
35 x M10 |
35 |
M10 |
39 |
45 |
31-32 |
400 |
AF10/35/ M12 |
AF11/35/ M12 |
35 x M12 |
35 |
M12 |
39 |
45 |
31-32 |
400 |
AF10/35/ M16 |
AF11/35/ M16 |
35 x M16 |
35 |
M16 |
39 |
45 |
31-32 |
400 |
AF10/38/ M8 |
AF11/38/ M8 |
38 x M8 |
38 |
M8 |
41 |
45 |
35-36 |
500 |
AF10/40/ M16 |
AF11/40/ M16 |
40 x M16 |
40 |
M16 |
39 |
45 |
36-37 |
350 |
N/A |
AF11/51/ M20 |
51 x M20 |
51 |
M20 |
39 |
47 |
47-48 |
750 |

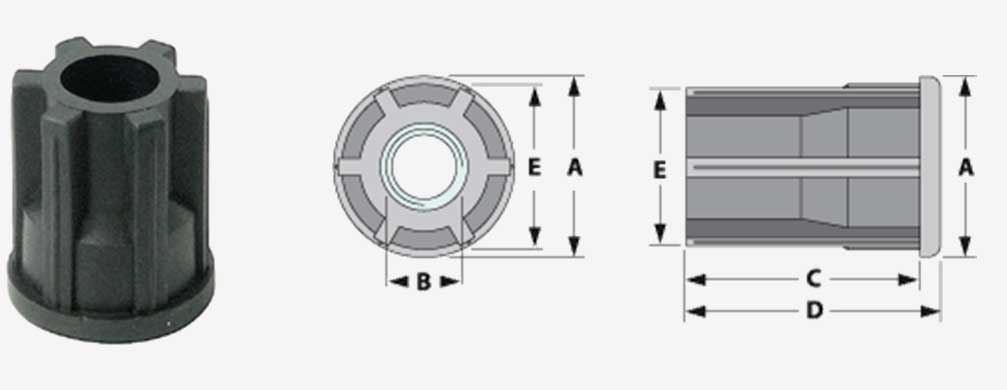

Round knock-in tube ends
Key
A = Outside tube (OD)
B = Internal thread
C = Knock-in length
D = Overall length
E = Internal size (ID)
Specifications
Mild steel 80 |
Stainless steel 81 |
A |
B |
C |
D |
E |
Tube ID * |
Load rating |
|
|---|---|---|---|---|---|---|---|---|---|
- |
AF81/25/ M8 |
25 x M8 |
25 |
M8 |
38 |
46.5 |
23 |
22 |
100 |
- |
AF81/25/ M10 |
25 x M10 |
25 |
M10 |
38 |
46.5 |
23 |
22 |
100 |
- |
AF81/25/ M12 |
25 x M12 |
25 |
M12 |
38 |
46.5 |
23 |
22 |
100 |
- |
AF81/32/ M8 |
32 x M8 |
32 |
M8 |
39 |
45 |
29.5 |
28-29 |
200 |
- |
AF81/32/ M10 |
32 x M10 |
32 |
M10 |
39 |
45 |
29.5 |
28-29 |
250 |
- |
AF81/32/ M12 |
32 x M12 |
32 |
M12 |
39 |
45 |
29.5 |
28-29 |
250 |
- |
AF81/32/ M16 |
32 x M16 |
32 |
M16 |
32 |
45 |
29.5 |
28-29 |
250 |
- |
AF81/38/ M10 |
38 x M10 |
38 |
M10 |
38 |
45 |
35.5 |
35-36 |
300 |
- |
AF81/38/ M12 |
38 x M12 |
38 |
M12 |
38 |
45 |
35.5 |
35-36 |
300 |
- |
AF81/38/ M16 |
38 x M16 |
38 |
M16 |
38 |
45 |
35.5 |
35-36 |
300 |
- |
AF81/51/ M12 |
51 x M12 |
51 |
M12 |
38 |
45 |
48 |
47-48 |
450 |
- |
AF81/40/ M10 |
40 x M10 |
40 |
M10 |
39 |
45 |
36.8 |
36-37 |
500 |
- |
AF81/40/ M12 |
40 x M12 |
40 |
M12 |
39 |
45 |
36.8 |
36-37 |
500 |
- |
AF81/40/ M16 |
40 x M16 |
40 |
M16 |
39 |
45 |
36.8 |
36-37 |
500 |
- |
AF81/51/ M12 |
51 x M12 |
51 |
M12 |
38 |
45 |
48 |
47-48 |
450 |
- |
AF81/51/ M16 |
51 x M16 |
51 |
M16 |
38 |
45 |
48 |
47-48 |
450 |
- |
AF81/62/ M16 |
62 x M16 |
62 |
M16 |
38 |
45 |
60.5 |
60-61 |
450 |

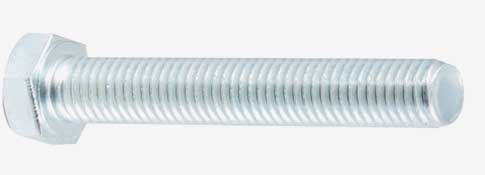

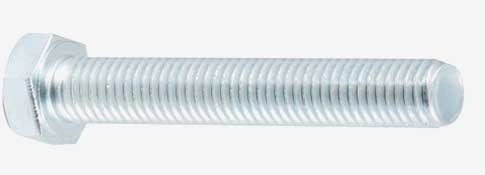

Set screws
Specifications
Order code |
Thread size |
Suits external size tube or SHS |
|---|---|---|
SPM12X75SETZ |
12 |
75mm long mild steel set screw |
SPM12X75SETS |
12 |
75mm long stainless steel set screw |
