Castor

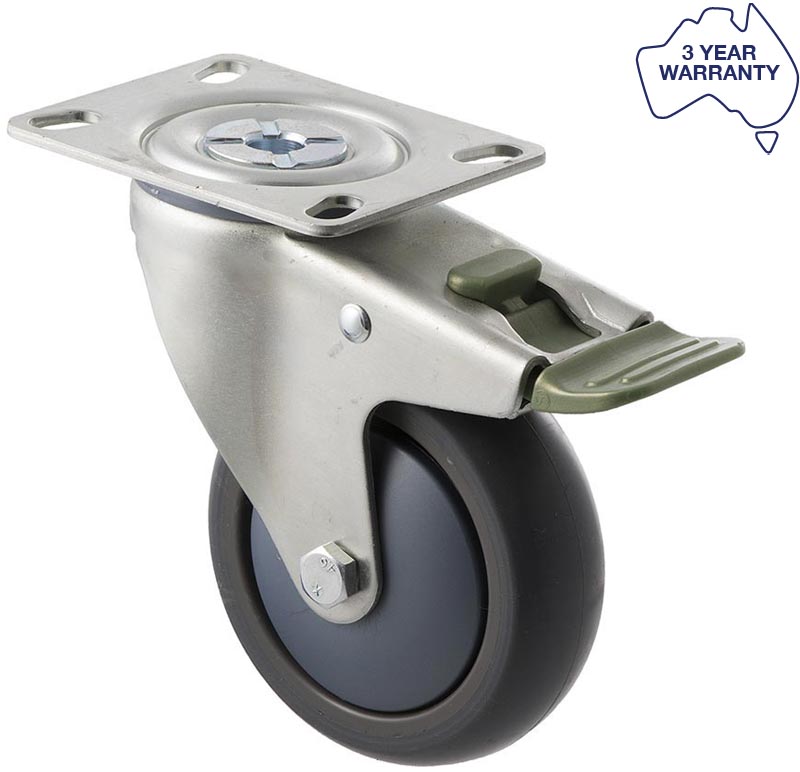

M Series castor, thermoplastic elastomer (TPE) 100mm wheel, plain bearing, swivel plate, direction lock, Bluestone thread guard, load rating 85 kg
M100 TPE Plain BRG TG M100 Zinc Plate(ISO) SWL DL M Core - Castor
Order code: MJA100G/MZPDL
$49.83 (Inc GST)
0.0
0 reviews
The MJA100G/MZPDL Castor has a Thermoplastic elastomer (TPE) wheel with a diameter of 100 mm, and a maximum load capacity of 85 kg per Castor.
Product type: |
Castor |
Order code: |
MJA100G/MZPDL |
Wheel diameter (mm): |
100 |
Load capacity (kg): |
85 |
Mount type: |
Swivel plate ISO |
Brake type: |
Direction lock |
Tyre type (material): |
Thermoplastic elastomer (TPE) |
Fork mount dimensions
For castor plate and bolt hole dimensions, visit the fork mount dimensions page.
3D CAD drawings:
Key Features
| Available in: | EA , EACH |
