Castor

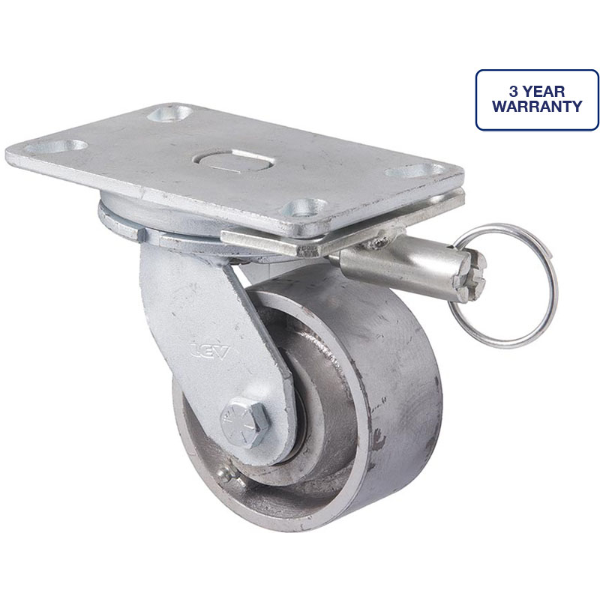

X Series castor, 102mm cast iron wheel, heavy duty industrial, precision bearing, swivel plate, direction lock, kingpin, 48mm tread, 600kg load rating.
X cast iron Q BRG 100mm X 100mm Zinc Plate(INA) DL 72 Core - Castor
Order code: XCQ100/XZPDL
$170.23 (Inc GST)
Fallshaw BRAND
0.0
0 reviews
The XCQ100/XZPDL Castor has a Cast iron wheel with a diameter of 100 mm, and a maximum load capacity of 600 kg per Castor.
Product type: |
Castor |
Order code: |
XCQ100/XZPDL |
Wheel diameter (mm): |
100 |
Load capacity (kg): |
600 |
Mount type: |
Swivel plate ISO |
Brake type: |
Direction lock |
Tyre type (material): |
Cast iron |
Fork mount dimensions
For castor plate and bolt hole dimensions, visit the fork mount dimensions page.
3D CAD drawings:
Key Features
| Available in: | EA , EACH |
