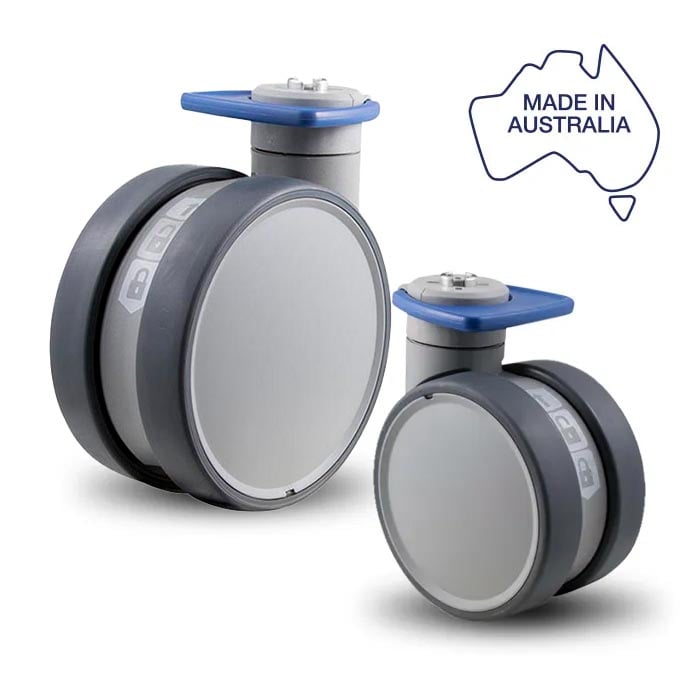

Trinity castors for healthcare



Trinity logo

Three-in-one fixed brake position castors

Australian-made medical castors designed for patient transport including hospital beds, stretchers, chairs, equipment and trolleys.

Browse the Trinity in our online store

Browse range

Fixed brake position

The Trinity castor range is renowned in the healthcare industry for its three-in-one brake function and fixed brake pedal, meaning that you can use the castor no matter where it's facing as the pedal will always be accessible.

Three-in-one brake

The advanced braking system provides three brake funcions—total brake, directional lock and free swivel—controlled by soft touch actuation pedals.

Ultra-short swept radius

At 78mm (100mm version) the swept radius is ultra small and eliminates trip hazards.

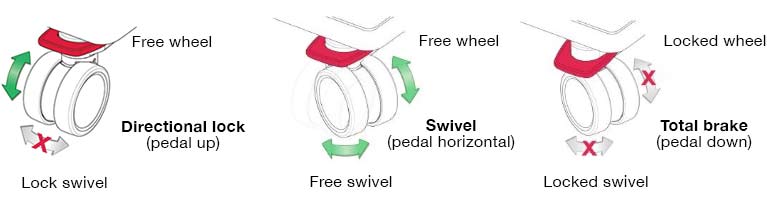

illustration of how the three-in-one brake pedal works

Mounting and colourway options

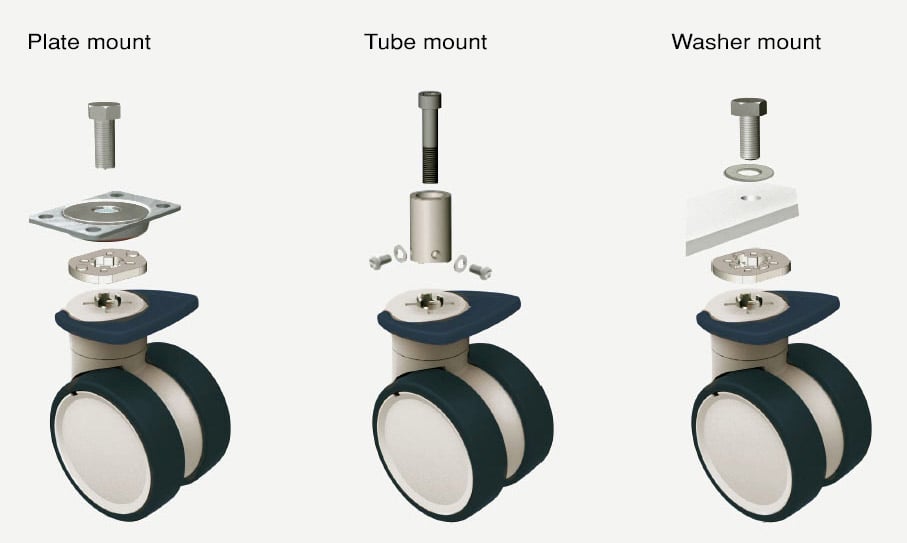

illustration of plate, tube and washer mounts

Castors can be installed either with a plate mount, tube mount or washer mount (as per images above); however, the installation method must provide a 'stopper' to prevent over-extension of the pedal in the 'up' direction. This has been found to be critical to ensure long life of the product in the field and protect against the castors being damaged from abuse by kicking the pedal.

Fallshaw can provide stoppers for this purpose or, manufacturers can design this into the bed frame (with our assistance).


Grey colourway

Body

Wheels

Pedal

Pantone 423 C Pantone 7546 C Pantone 288 C

Eggshell colourway

Body

Wheels

Pedal

Pantone 7527 C Pantone 7546 C Pantone 7545 C

Stopper options and order codes

Order code

Product

Application

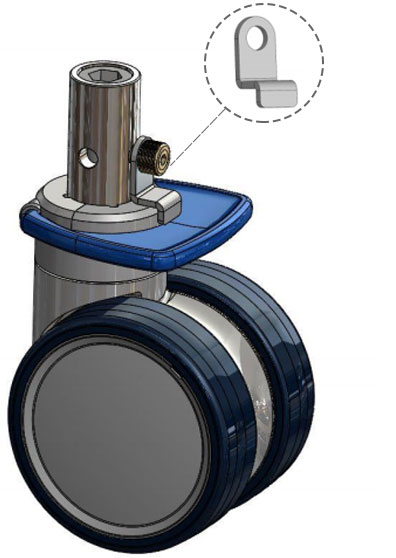

Total brake castor with tube mount

Order code:
SPSTOPFPTLTBAN

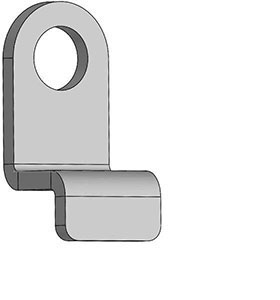

SPSTOPFPTLTBAN product

SPSTOPFPTLTBAN product

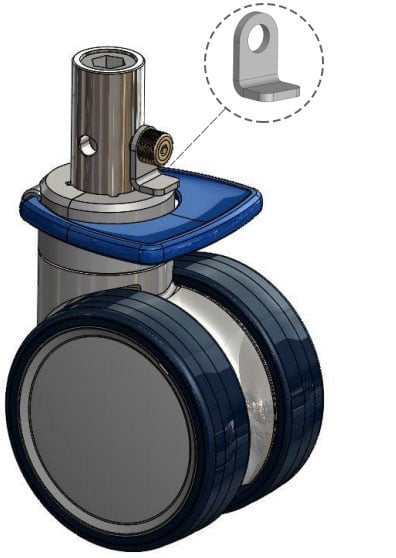

Complete brake castor with tube mount

Order code:
SPSTOPFPTLCBAN

SPSTOPFPTLCBAN product

SPSTOPFPTLCBAN application

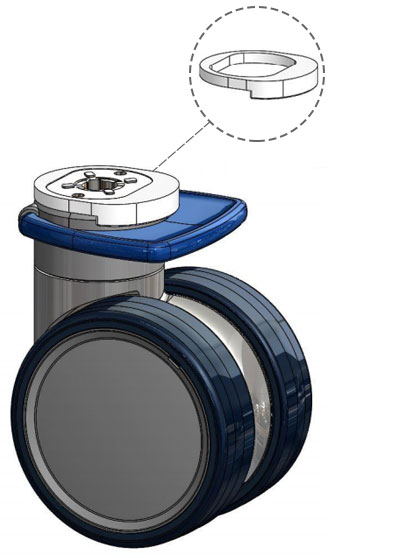

Total brake castor with washer mount

Order code:
SPSTOPFWSHTBBN

SPSTOPFWSHTBBN product

SPSTOPFWSHTBBN product

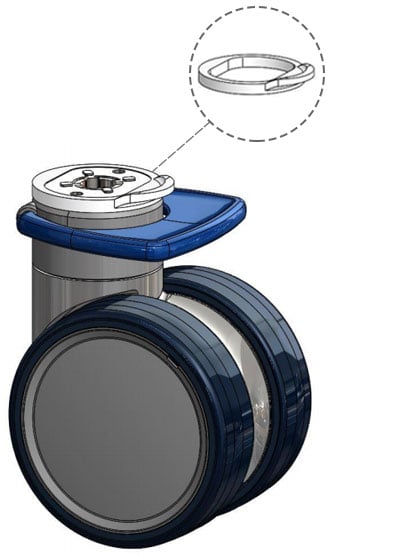

Complete brake castor with washer mount

Order code:
SPSTOPFWSHCBBN

SPSTOPFWSHCBBN product

SPSTOPFWSHCBBN product

Specifications

Wheel size

100 mm 125 mm 150 mm

Mount height*

133 mm 161 mm 185 mm

Swept radius

78 mm 104 mm 129 mm

Standard features

  • IPX5 water resistance rating
  • Cool grey or eggshell colourway

* Add another 5 mm for washer mount

All Trinity castors are Australian designed and made under the following patents:

  • USA patent 8205297 (12/663354)
  • European patent 2164715
  • Australian patent 2008258348
  • International patent pending 20150266342

Standards compliance

  • IEC60601 3rd edition including IEC 60601-2-52—Particular requirments for the basic safety and essential performance of medical beds
  • IEC Threshold test and 10° ramp test compliance

Also available from the Trinity range

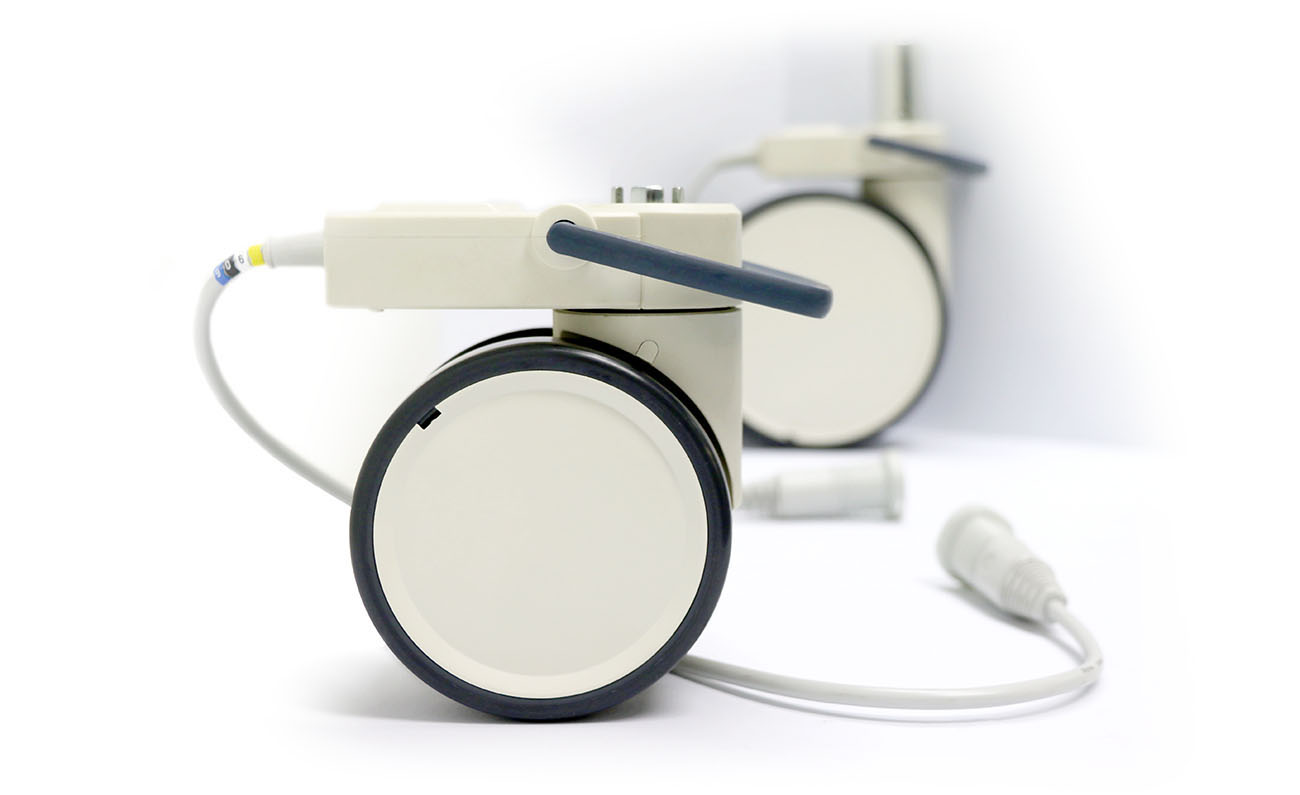

image of Trinity EBC
