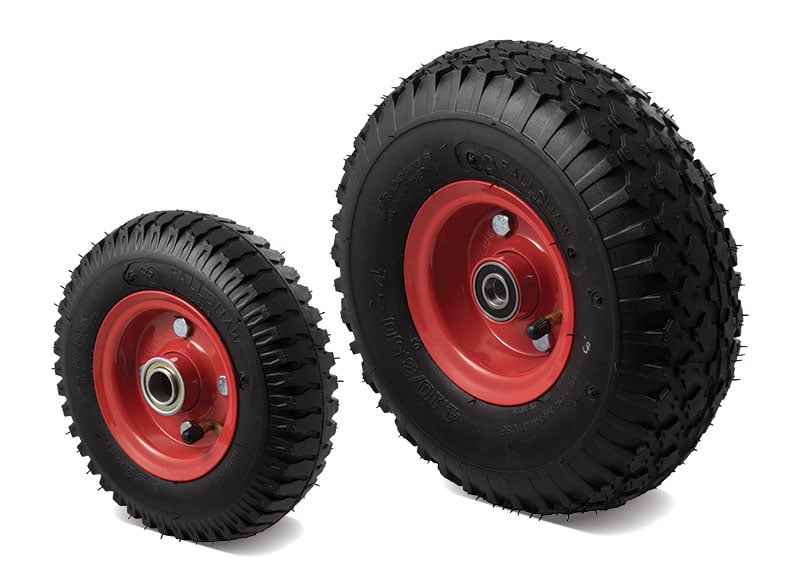

Steel-centred pneumatic wheels

Premium quality

Designed for strength and performance, our wobble-free steel centred wheels boast 4 ply tyres, rims manufactured from 1.8 mm steel—with the 650 x 8 manufactured from 2 mm steel, and supplied with premium butyl rubber seamless (butt-joined) tubes.

Supplied with tubes for high performance and improved weight carrying capacity. These wheels can be retrofitted with tubes if original tyres are punctured*. Steel centred wheels provide higher load capacity and reliable long life performance. Sizes up to and including the 500x6 are manufactured from 1.8 mm steel, and the 650x8 is of 2 mm thick steel.

Steel split-rim tube type wheels

Bearings for pneumatics

‘Deep Groove’ shielded bearings (indicated in order codes with SB) fitted to a toughened heavy duty housing enables true running and extra strength. Deep groove bearings can last up to 3 times longer than normal pressed bearings.

Pneumatic tyres

4 ply (6 ply on HWY tread) for longer, rougher life. Many imports use as little as 2 ply thickness.

For wheels pulled or pushed at low speeds (not driven) the tread pattern is not critical. The following are standard. Other patterns can be offered by negotiation.

It is normal for air filled wheels to lose tyre pressure over time even if they are not being used and it’s important for your safety that you ensure that the wheels are pumped up to their recommended PSI before use—alternatively you can use our semi-pneumatic puncture proof wheels in applications that require wheels to never go flat.

For non-marking tyres, see our puncture proof wheels or plastic centred wheels.

Warning

Do NOT inflate over recommended tyre inflation pressure (30 psi).

Do NOT allow tyre pressure to drop bellow 20 psi or wheel may deflate and become very difficult to re-inflate. If you allow the tyre to go flat and you are unable to re-inflate it then you may need to buy an inner tube to be retro fitted to the wheel.

Visit: Spares for pneumatic and general wheels for more information.

Note: Use of pneumatic wheels other than as recommended can be dangerous.

Pneumatic tyre tread

Type

Diameter x tread (mm)

Hub x bore (mm)

Max load (kg) at 8 km/h

Max load (kg) at 15 km/h

Order code

Rim and bearing code



LUG tyre tread

LUG

250 x 4

220 x 54

60 x 20

120

100

250X4LUG*

-SB20

20 mm

View

60 x 19 -SB34 3/4"

View

60 x 16 -SB58 5/8"

View

DMD tyre tread

DMD

300 x 4

250 x 70

60 x 20

140

110

300X4DMD*

-SB20

20 mm

View

60 x 19 -SB34 3/4"

View

60 x 16 -SB58 5/8"

View

STR tyre tread

STR

350 x 4

265 x 70

60 x 20

180

160

350X4STR*

-SB20

20 mm

View

60 x 19 -SB34 3/4"

View

60 x 16 -SB58 5/8"

View

IND tyre tread

IND

250 x 6

275 x 65

60 x 25.4

140

110

250X6IND1

-SB10

1 "

View

60 x 20

-SB20

20 mm

View

60 x 19 -SB34 3/4"

View

60 x 16 -SB58 5/8"

View

KNO tyre tread

KNO

350 x 6

320 x 80

60 x 25.4

200

180

350X6KNO1

-SB10

1"

View

60 x 20

-SB20

20 mm

View

60 x 19 -SB34 3/4"

View

60 x 16 -SB58 5/8"

View

HWY tyre tread

HWY

400 x 8

400 x 100

84 x 25.4

360

340

400X8HWY1

-SB10

1"

View

84 x 20

-SB20

20 mm

View

84 x 19 -SB34 3/4"

View

84 x 16 -SB58 5/8"

View

KNO tyre tread

KNO

400 x 8

400 x 100

84 x 25.4

220

200

400X8KNO1

-SB10

1"

View

84 x 20

-SB20

20 mm

View

84 x 19 -SB34 3/4"

View

84 x 16 -SB58 5/8"

View

GRA tyre tread

GRA

500 x 6

330 x 125

84 x 25.4

220

200

500X6GRA1

-SB10

1"

View

84 x 20

-SB20

20 mm

View

84 x 19 -SB34 3/4"

View

84 x 16 -SB58 5/8"

View

GRA tyre tread

GRA

650 x 8

420 x 165

150 x 25.4

230

200

650X8GRA1

-SB10

1"

View

150 x 20

-SB20

20 mm

View

150 x 19 -SB34 3/4"

View

150 x 16 -SB58 5/8"

View

* Also available with 15 mm precision bearings. Add -SQ15 to the end of the code.

1 Also available with precision bearings: 20 mm (-SQ20), 25 mm (-SQ25), 3/4" (-SQ534), 5/8" (-SQ58) and 1" (-SQ10).
