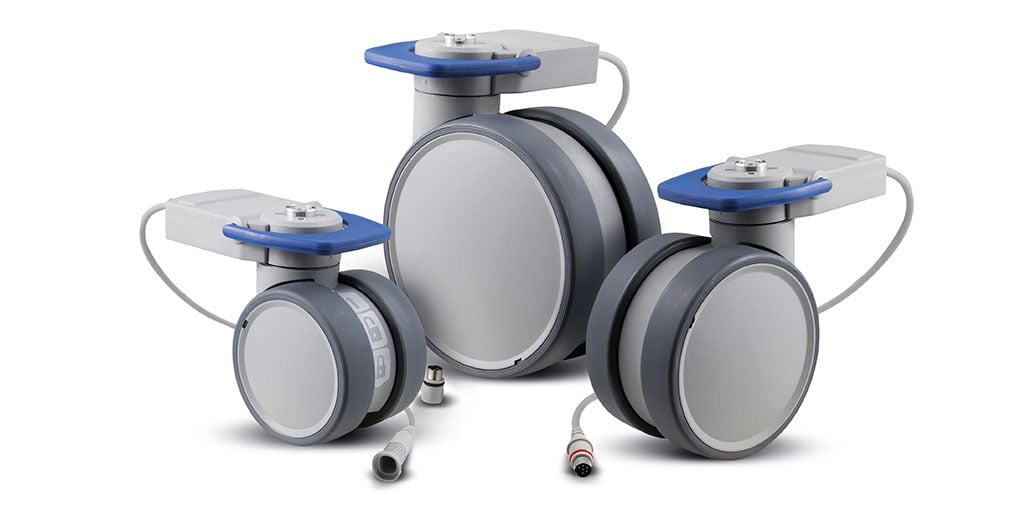

Trinity EBC

Technical information

With a range of colours* and mount options, the castors can be fitted with cables to suit leading brands of hospital bed control systems including those from LINAK, DEWERT andTiMOTION.

It's easy to design Trinity EBC to fit your needs. Alternatively, we can work with an OEM’s design engineers to integrate castor functionality into proprietary control software.


Specifications

Wheel size 100 mm 125 mm 150 mm
Mount height* 133 mm 161 mm 185 mm
Swept radius 78 mm 104 mm 129 mm
Cable length 500 mm 500 mm 500 mm
Standard fittings
  • 32 mm pintle
  • 28 mm ISO pintle
  • Washer
Standard features
  • IPX5 water resistance rating
  • Cool grey colourway
Optional features
  • Auto brake motion sensor
  • Intuitive steer motion sensor
  • Conductive anti-static (resistance <105 ohms)
  • IPX6 water resistance rating
* Add another 5 mm for washer mount

Patents

All Trinity castors are Australian designed and made under the following patents:

  • USA patent 8205297 (12/663354)
  • European patent 2164715
  • Australian patent 2008258348
  • International patent pending 20150266342

Technical standards

All Trinity castors are designed to comply with IEC 60601 3rd edition including IEC 60601-2-52—Particular requirements for the basic safety and essential performance of medical beds.

They are designed and tested to rigorous technical engineering standards including:

  • IEC Threshold test and 10° ramp test compliance.
  • Brake life testing of 60,000 on/off cycles.
  • Long life run test at 2.4 km/h over 30,000 obstacles (9.5 mm tall for the 100–150 mm wheel sizes).

We work with your technical staff to ensure you have extensive test data and reports to validate the robust product reliability that enables our 3 year warranty.

Mounting and colourway options

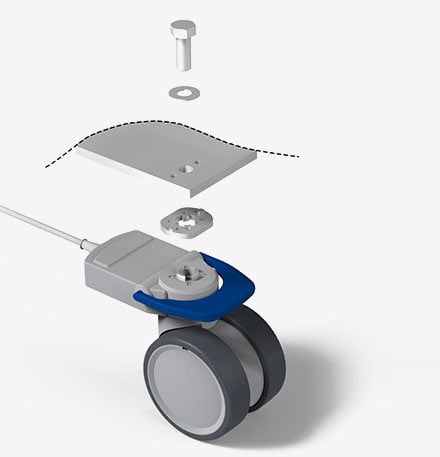

illustration of washer mount

Washer mount*

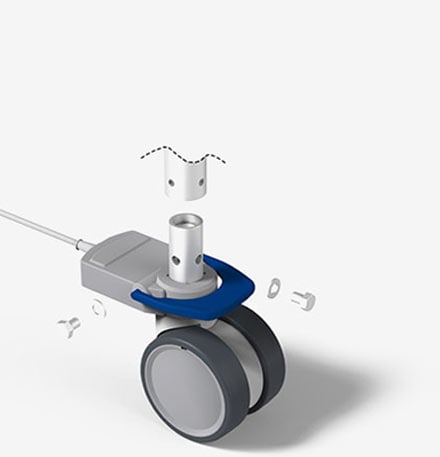

illustration of pintle mount

Pintle mount

Castors can be installed either with a pintle mount or washer mount (as per images above); however, the installation method must provide a ‘stopper’ to prevent over-extension of the pedal in the 'up' direction. This has been found to be critical to ensure long life of the product in the field and protect against the castors being damaged from abuse by kicking the pedal.

Fallshaw can provide stoppers for this purpose or, manufacturers can design this into the bed frame (with our assistance).

Mount options

Product code

Description

Washer mount*

SPWSHFZLASER Lasercut mount
SPWSHFZDRILL Drill mount

Pintle mount

-AFR28Z(100) Fits 100 mm wheels, 28 mm round stem
-AFR28Z(125150) Fits 125 mm & 150 mm wheels, 28 mm round stem
-AFR32Z(100) Fits 100 mm wheel, 32 mm round stem
-AFR32Z(125150) Fits 125 mm & 150 mm wheels, 32 mm round stem

Colourway

Grey colourway

Body

Wheels

Pedal

Pantone 423 C Pantone 7546 C Pantone 288 C
Customised colours are available on request. Minimum quanities apply.

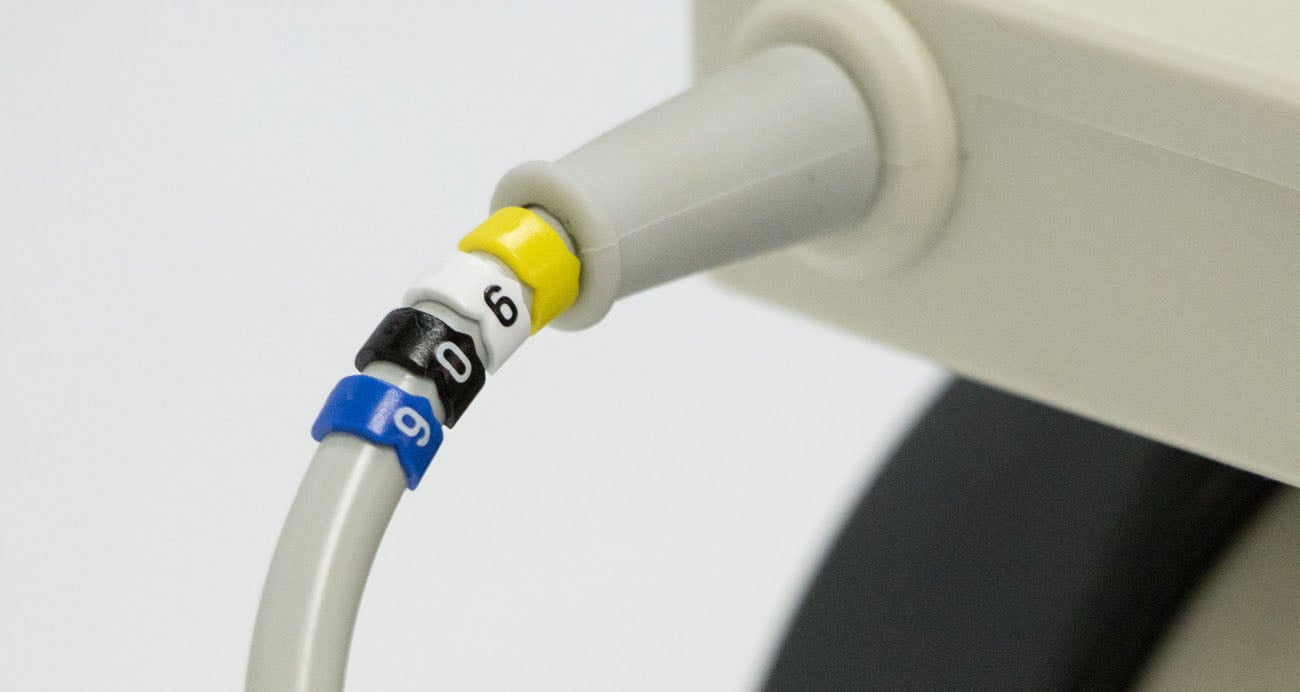

Colour coded feature identification

Blue Intuitive steering
Black Motion sensing
White IPX6 water resistance
Yellow Conductive anti-static
The absence of a colour-coded clip indicates the alternative
Colour coded feature identification

Build your Trinity EBC

Use this guide to generate your Trinity EBC product code, combine with your chosen mount type product code, which you can quote when speaking to one of our sales consultants. Alternatively you can download the product code structure.

Please note: The combination of "total brake" and "intuitive steering (with motion sensor)" is unavailable.

1. Standard features

Select size
Select pedal position
Select colourway
Select brake system
Cable compatibility

2. Optional features

Intuitive steering (with motion sensor)
Not available with Total Brake
Motion sensor only
Anti-static tyre and fork
Upgrade to IPX6 water resistance

3. Mount options

Lasercut washer mount
(Washer mount not compatible with 150mm Trinity and Trinty EBC.)
Drilled washer mount
(Washer mount not compatible with 150mm Trinity and Trinty EBC.)
Pintle mount with 28 mm stem
Pintle mount with 32 mm stem

* Please note: A minimum order quantity of 500 is required when ordering non-standard colours.


Stopper options and order codes

Order code

Product

Application

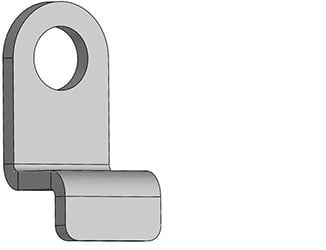

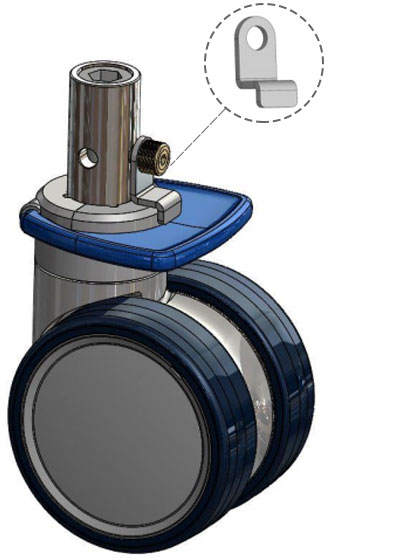

Total brake castor with tube mount

Order code:
SPSTOPFPTLTBAN

SPSTOPFPTLTBAN product

SPSTOPFPTLTBAN product

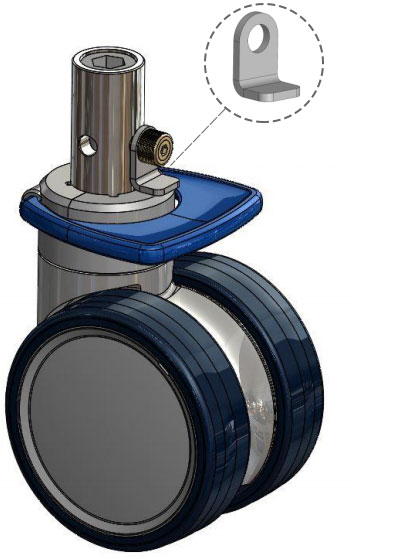

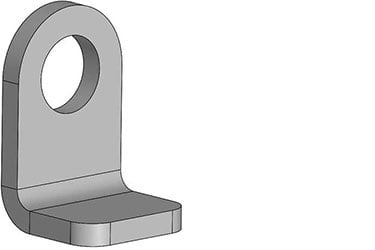

Complete brake castor with tube mount

Order code:
SPSTOPFPTLCBAN

SPSTOPFPTLCBAN product

SPSTOPFPTLCBAN application

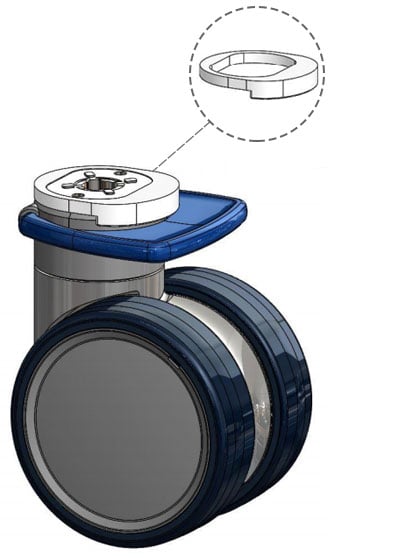

Total brake castor with washer mount*

Order code:
SPSTOPFWSHTBBN

SPSTOPFWSHTBBN product

SPSTOPFWSHTBBN product

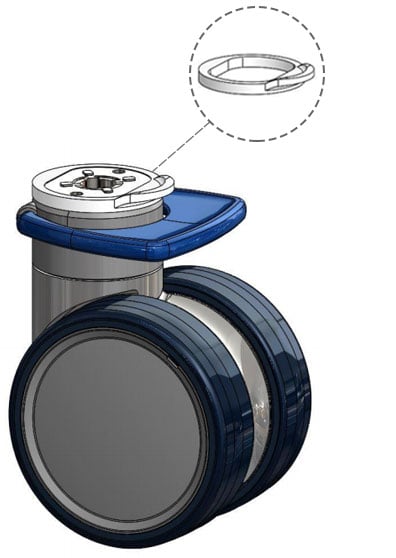

Complete brake castor with washer mount*

Order code:
SPSTOPFWSHCBBN

SPSTOPFWSHCBBN product

SPSTOPFWSHCBBN product

* Washer mount not compatible with 150mm Trinity and Trinty EBC.

Enquiries

For more information about Trinity EBC please email [email protected] or phone 1300 934 471 (within Australia) or +613 9300 8555 (international).
